Harting

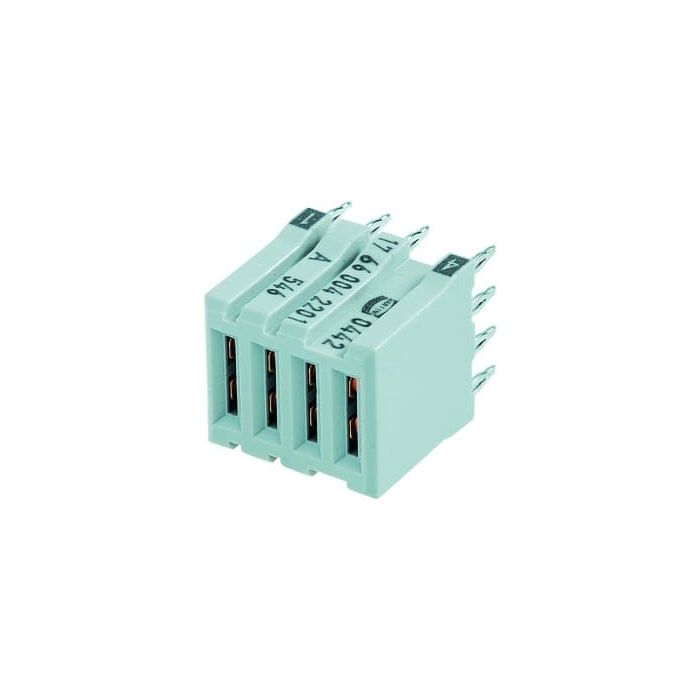

har-bus HM Power female 4p PL2

Connectors, Female connector, Press-in termination, Rated current:20 A, Contacts: 4, Straight, Copper alloy, Gold plated, Performance level: 2, Thermoplastic resin, glass-fibre filled, Beige
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment har-bus HM power female
Product Family har-bus HM
Product Brand Name 17 66 004 2201
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 40.0000
Quantity Interval 40.0000
Country of origin DE
Type of packaging plastic box
Number of poles 4.0000
Material contact surface Gold
Material of insulation Thermoplast
Direction mating face Standard
Coating plug contact area Gold (au)
Number of rows 1.0000
Type of PCB contacting Press-in
Grid dimensions 1 (mm) 3.0000
Grid dimensions 2 (mm) 3.0000
Material contact Other copper alloys
Fire resistance class V0
Current Rating (A) 20.0000
Temperature Range -55 to 125 Deg. C
