19000005015
19000005015
Harting

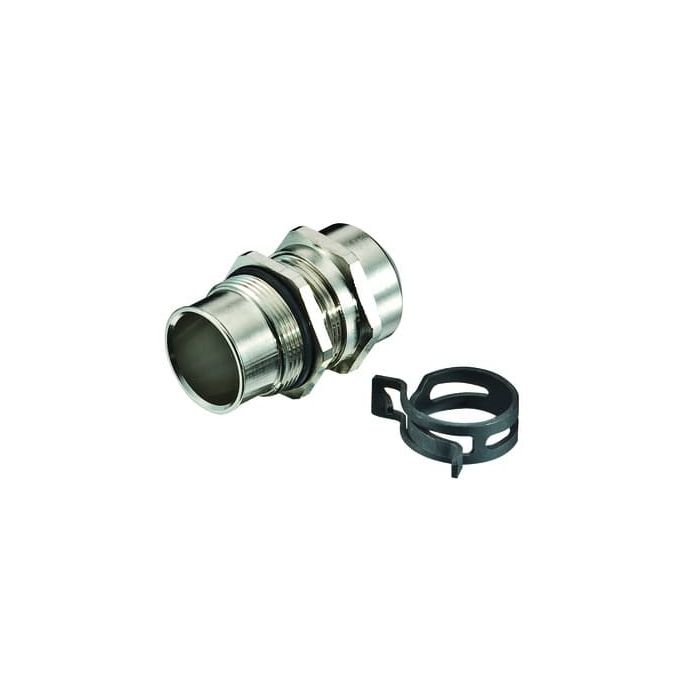

Spec. Cable Gland M32 Cable-√ò17-22.5 SBC
Cable gland, EMC version, M32, Clamping range: 17 ... 22.5 mm, Material (cable glands): Brass, Material (clamping ring): Polyamide (PA), IP65 / IP68, Wrench size: 36
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 432 Cable Glands |
| Product Family | Cable Glands metal |
| Product Brand Name | 19 00 000 5015 |
| Manufacturer | HARTING |
| Customs tariff number | 84849000 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® HPR EasyCon |
| Degree of protection - IP (mounted) | IP65 / IP68 |
| Maximum operating ambient temperature (deg C) | 100.0000 |
| Wrench width 1 (mm) | 36.0000 |
| Size of connection thread | M32 |
| Thread type of cable gland | metric |
| Material | Brass |
| Minimum cable diameter (mm) | 11 - 20 |
| Maximum cable diameter (mm) | 21 - 30 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
