19000005086
19000005086
Harting

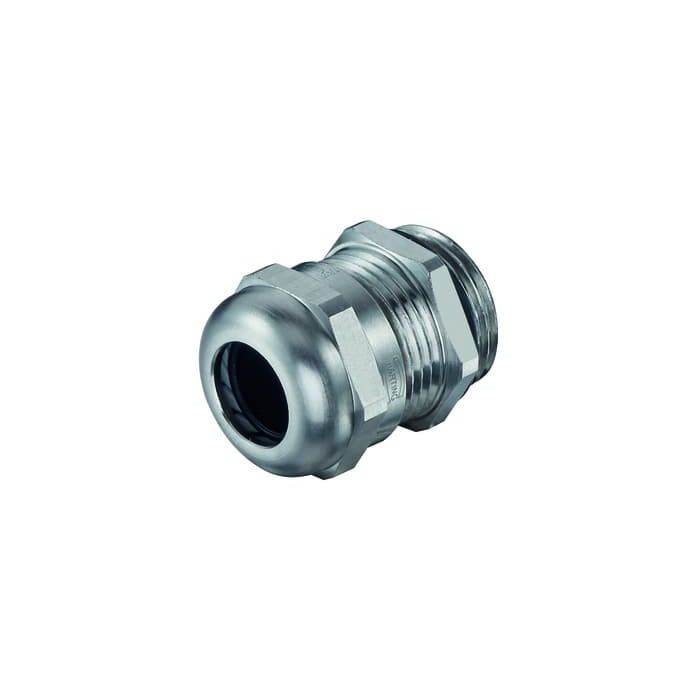

Han CGM-M M50x1,5 D.32-38mm
Cable gland, M50, Clamping range: 32 ... 38 mm, Material (cable glands): Brass, Material (clamping ring): Polyamide (PA), IP68, IP69 / IPX9K acc. to ISO 20653, Wrench size: 57
In stock
| Attribute | Value |
|---|---|
| Product Segment | 432 Cable Glands |
| Product Family | Cable Glands metal |
| Product Brand Name | 19 00 000 5086 |
| Manufacturer | HARTING |
| Customs tariff number | 84849000 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han® CGM-M |
| Degree of protection - IP (mounted) | IP68 |
| Maximum operating ambient temperature (deg C) | 100 |
| Wrench width 1 (mm) | 57 |
| Size of connection thread | M50 |
| Thread type of cable gland | metric |
| Material | Brass |
| Minimum cable diameter (mm) | 31 - 40 |
| Maximum cable diameter (mm) | 31 - 40 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
