19000005092
19000005092
Harting

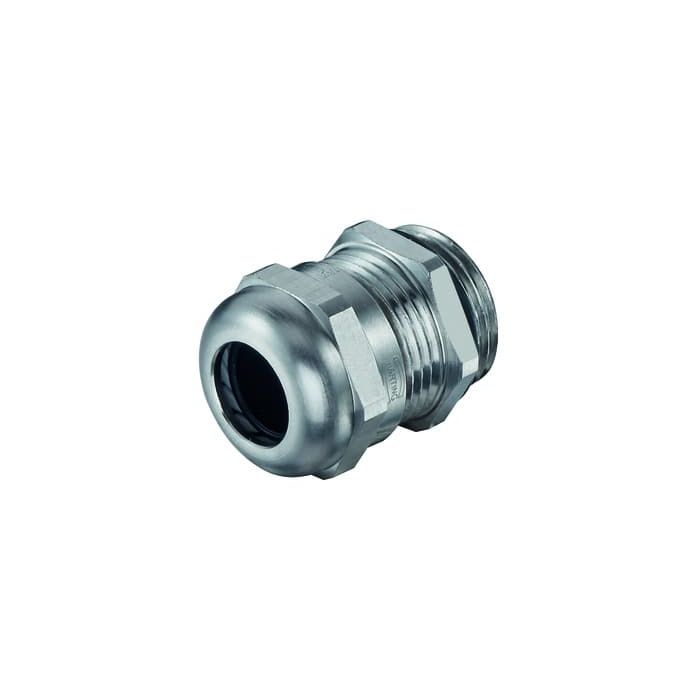

Han CGM-M M25x1,5 D.13-18mm
Cable gland, M25, Clamping range: 13 ... 18 mm, Material (cable glands): Brass, Material (clamping ring): Polyamide (PA), IP68, IP69 / IPX9K acc. to ISO 20653, Wrench size: 30
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 432 Cable Glands |
| Product Family | Cable Glands metal |
| Product Brand Name | 19 00 000 5092 |
| Manufacturer | HARTING |
| Customs tariff number | 84849000 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® CGM-M |
| Degree of protection - IP (mounted) | IP68 |
| Maximum operating ambient temperature (deg C) | 100.0000 |
| Wrench width 1 (mm) | 30.0000 |
| Size of connection thread | M25 |
| Thread type of cable gland | metric |
| Material | Brass |
| Minimum cable diameter (mm) | 11 - 20 |
| Maximum cable diameter (mm) | 11 - 20 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
