Harting

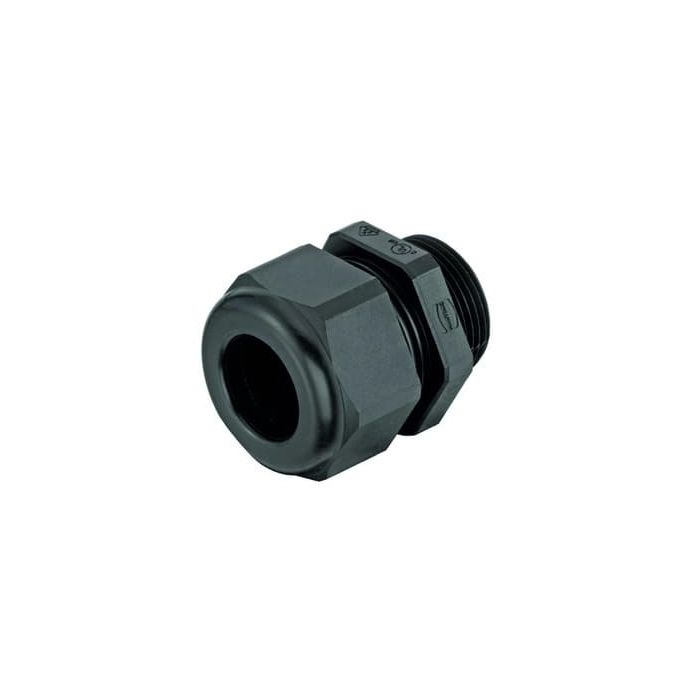

Han CGM-P M20x1,5 D.10-14mm black
Cable gland, M20, Clamping range: 10 ... 14 mm, Material (cable glands): Polyamide (PA), IP68, IP69 / IPX9K acc. to ISO 20653, Wrench size: 27
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | 432 Cable Glands |
| Product Family | Cable Glands plastic |
| Product Brand Name | 19 00 000 5185 |
| Manufacturer | HARTING |
| Colour | Black |
| Customs tariff number | 39269097 |
| Quantity Min | 10 |
| Quantity Interval | 10 |
| Country of origin | DE |
| Manufacturer's Brand | Han® CGM-P |
| Degree of protection - IP (mounted) | IP68 |
| Maximum operating ambient temperature (deg C) | 100 |
| Wrench width 1 (mm) | 27 |
| Size of connection thread | M20 |
| Thread type of cable gland | metric |
| Material | Polyamide (PA) |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 11 - 20 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
