19200031160
19200031160
Harting

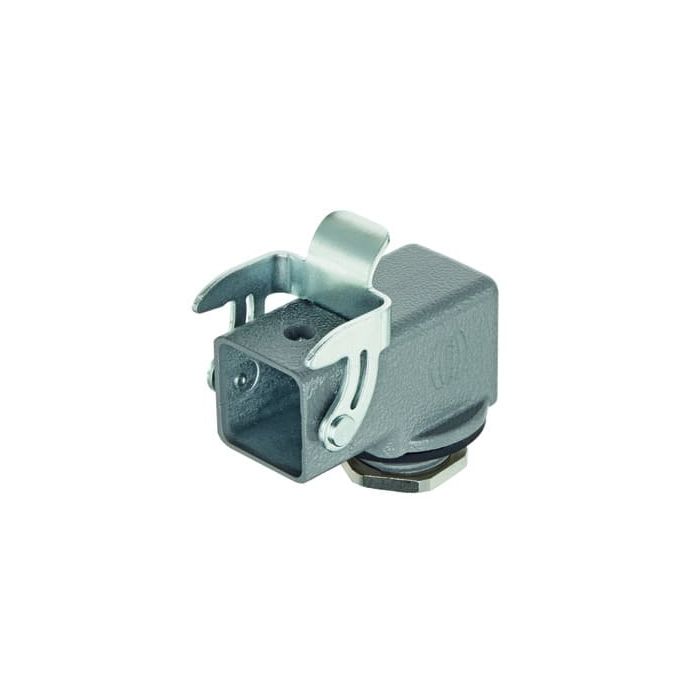

Han 3A-Base angled-M20
Screw mounted housing, Angled, Size: 3 A, Single locking lever, Steel, 1x M20, Material (hood/housing): Zinc die-cast, Powder-coated, RAL 7037 (dust grey), Degree of protection: IP44, IP65 / IP67, with seal screw 09 20 000 9918
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 421 Han A® |
| Product Family | Han A Housings |
| Product Brand Name | 19 20 003 1160 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Grey |
| Customs tariff number | 85389099 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han A® |
| Size | 3 A |
| Material housing | Zink |
| Degree of protection - IP (mounted) | IP44 |
| Design of housing | Screw mounted housing |
| Housing colour | Grey |
| Interlock type | Longitudinal strap |
| Shackle position | Subsection |
| Size of connection thread | M20 |
| Number of cable inlets | 1.0000 |
| Cable gland mounting method | metric |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
