19200031250
19200031250
Harting

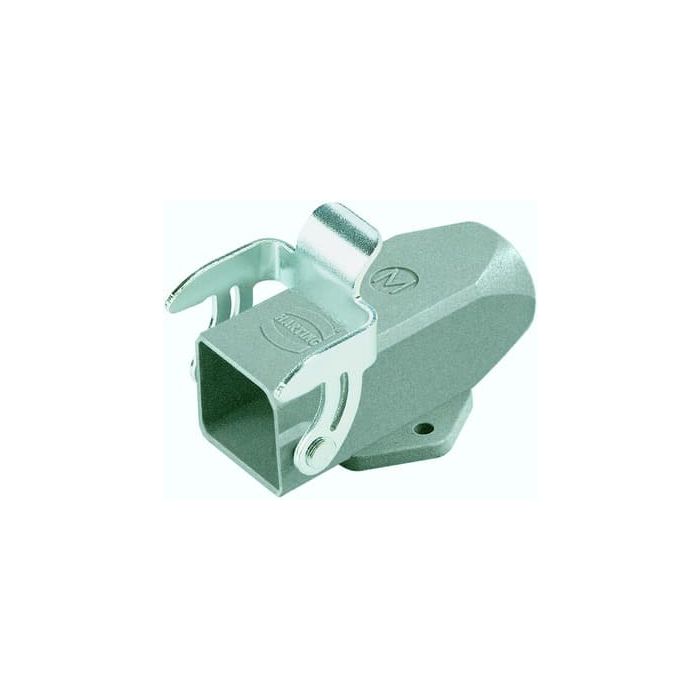

Han 3A-HSM angled-L-M20
Surface mounted housing, Open bottom, Size: 3 A, Single locking lever, Steel, Top entry, 1x M20, Material (hood/housing): Zinc die-cast, Powder-coated, RAL 7037 (dust grey), Degree of protection: IP44, IP65 / IP67, with seal screw 09 20 000 9918
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Segment | 421 Han A® |
Product Family | Han A Housings |
Product Brand Name | 19 20 003 1250 |
Approvals | CE |
Manufacturer | HARTING |
Colour | Grey |
Customs tariff number | 85389099 |
Quantity Min | 10.0000 |
Quantity Interval | 10.0000 |
Country of origin | DE |
Manufacturer's Brand | Han A® |
Size | 3 A |
Material housing | Zink |
Degree of protection - IP (mounted) | IP44 |
Design of housing | Socket housing |
Housing colour | Grey |
Interlock type | Longitudinal strap |
Shackle position | Subsection |
Size of connection thread | M20 |
Cable entry direction | vertical |
Number of cable inlets | 1.0000 |
Cable gland mounting method | metric |
Housing surface finish | powder-coated |
Housing coating | powder-coated |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
