Harting

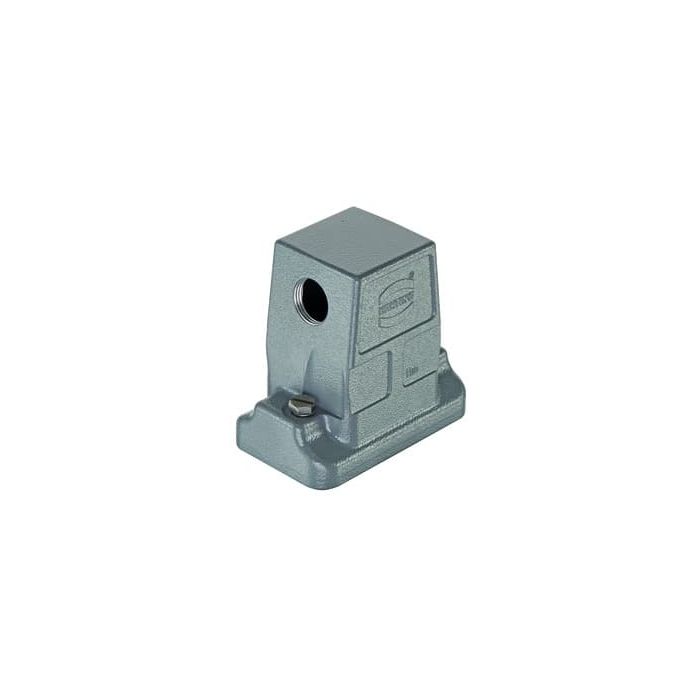

Han 6HP Direct/B-HSE-M25
Hood, Size: 6 B, Screw locking, Stainless steel, Side entry, 1x M25, Material (hood/housing): Aluminium die-cast, Powder-coated, RAL 7037 (dust grey), Material (seal): NBR, Degree of protection: IP66, IP68, IP69 / IPX9K acc. to ISO 20653
In stock
| Attribute | Value |
|---|---|
| Product Segment | 418 Han HP Hoods/Housings |
| Product Family | Han HP Hoods |
| Product Brand Name | 19 39 606 0546 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Grey |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | CN |
| Manufacturer's Brand | Han® HP Direct B |
| Size | 6 B |
| Standards | EN 60664-1 |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP66 |
| Design of housing | Sleeve housing |
| Housing colour | Grey |
| Interlock type | Screw |
| Shackle position | Without |
| Size of connection thread | M25 |
| Cable entry direction | lateral |
| Number of cable inlets | 1 |
| Cable gland mounting method | metric |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
