Harting

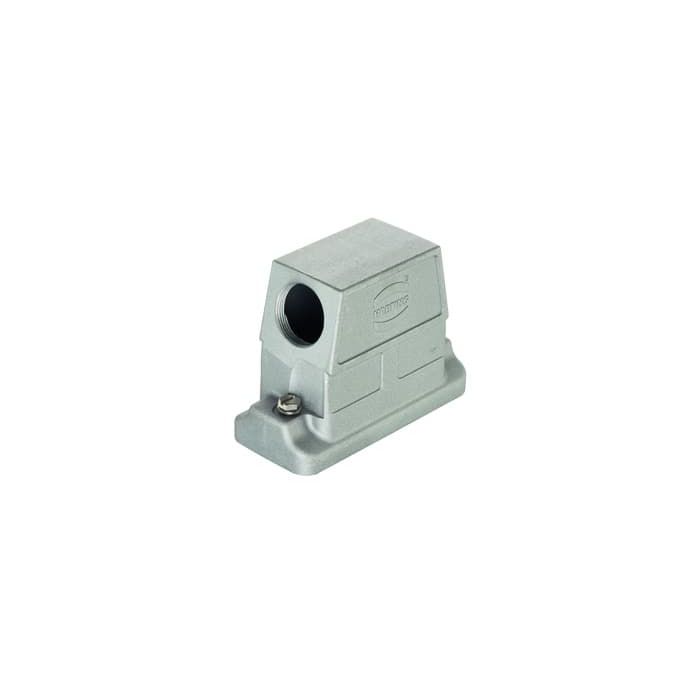

Han 16HP Direct/EMC-HSE-M32
Hood, Size: 16 B, Screw locking, Stainless steel, Side entry, 1x M32, Material (hood/housing): Aluminium die-cast, Electrical conductive, Unpainted, Material (seal): NBR, Degree of protection: IP66, IP68, IP69 / IPX9K acc. to ISO 20653
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | 418 Han HP Hoods/Housings |
| Product Family | Han HP Hoods |
| Product Brand Name | 19 39 816 0547 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | uncolored |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | CN |
| Manufacturer's Brand | Han® HP Direct EMC |
| Size | 16 B |
| Standards | EN 60664-1 |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP66 |
| Design of housing | Sleeve housing |
| Housing colour | Without |
| Interlock type | Screw |
| Shackle position | Without |
| Size of connection thread | M32 |
| Cable entry direction | lateral |
| Number of cable inlets | 1 |
| Cable gland mounting method | metric |
| Housing surface finish | Electrical conductive |
| Housing coating | Electrical conductive |
| EMC design present ? | Yes |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
