19400030951
19400030951
Harting

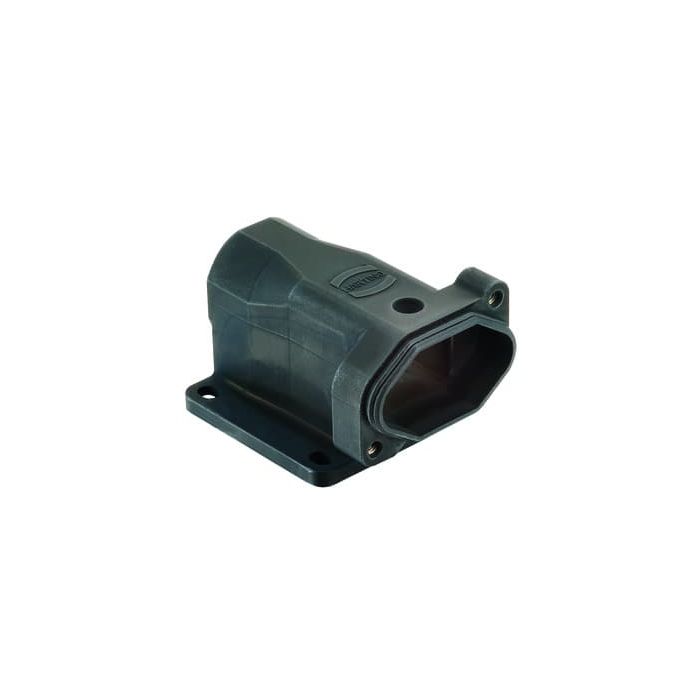

Han 3HPR angled hous. long version M25
Surface mounted housing, Long version, Bottom closed, Feed through hole for fixing screws, Size: 3 A, Screw locking, Top entry, 1x M25, Material (hood/housing): Zinc die-cast, Chromated, RAL 9005 (jet black), Material (seal): NBR, Degree of protection: IP65, IP68, IP69 / IPX9K acc. to ISO 20653
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 420 Han® HPR |
| Product Family | Han HPR Housings |
| Product Brand Name | 19 40 003 0951 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Black |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® HPR |
| Size | 3 A |
| UV Resistant | Yes |
| Material housing | Zink |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Socket housing |
| Housing colour | Black |
| Interlock type | Screw |
| Shackle position | Without |
| Size of connection thread | M25 |
| Cable entry direction | vertical |
| Number of cable inlets | 1.0000 |
| Cable gland mounting method | metric |
| Housing surface finish | Chromalized |
| Housing coating | Chromated |
| EMC design present ? | Yes |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
