19431160253
19431160253
Harting

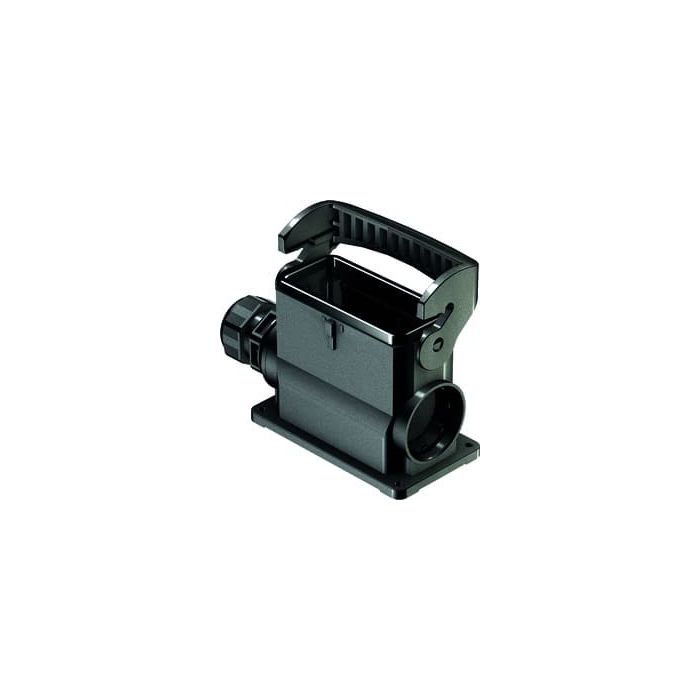

Han-Eco 16B-HSM1-with SL-M40-glanded
Surface mounted housing, With integrated cable gland, Size: 16 B, Single locking lever, Polyamide (PA), Fibre-glass reinforced, Side entry, 1x M40, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): NBR, Degree of protection: IP66
In stock
| Attribute | Value |
|---|---|
| Product Segment | 429 Han-Eco |
| Product Family | Han-Eco B Housings |
| Product Brand Name | 19 43 116 0253 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Black |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Eco® |
| Size | 16 B |
| UV Resistant | Yes |
| Standards | IEC 61984 |
| Material housing | Polyamide (PA) |
| Degree of protection - IP (mounted) | IP66 |
| Design of housing | Socket housing |
| Housing colour | Black |
| Interlock type | Longitudinal strap |
| Shackle position | Subsection |
| Size of connection thread | M40 |
| Cable entry direction | lateral |
| Number of cable inlets | 1 |
| Cable gland mounting method | metric |
| Screwed cable gland ? | Yes |
| Seal | Yes |
| Fire resistance class | V0 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
