19433160271

19433160271

19433160271

Harting

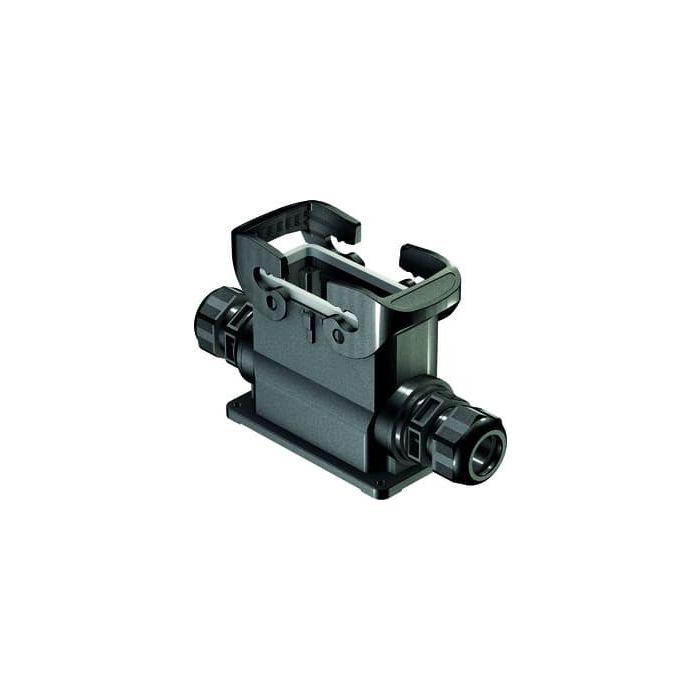

Han-Eco 16B Outd-HSM2-w. DL-M25-glanded

Surface mounted housing, With integrated cable gland, Size: 16 B, Double locking lever, Polyamide (PA), Fibre-glass reinforced, Side entry, 2x M25, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): FPM, Degree of protection: IP66
In stock
£56.62
More Information
Attribute Value
Product Segment 429 Han-Eco
Product Family Han-Eco B Housings
Product Brand Name 19 43 316 0271
Approvals CE
Manufacturer HARTING
Colour Black
Customs tariff number 85389099
Quantity Min 1
Quantity Interval 1
Country of origin DE
Manufacturer's Brand Han-Eco®
Size 16 B
UV Resistant Yes
Standards IEC 61984
Material housing Polyamide (PA)
Degree of protection - IP (mounted) IP66
Design of housing Socket housing
Housing colour Black
Interlock type Transverse strap
Shackle position Subsection
Size of connection thread M25
Cable entry direction lateral
Number of cable inlets 2
Cable gland mounting method metric
Screwed cable gland ? Yes
Seal Yes
Fire resistance class V0
More Information
Attribute Value
Data Sheet Click here to view
