Harting

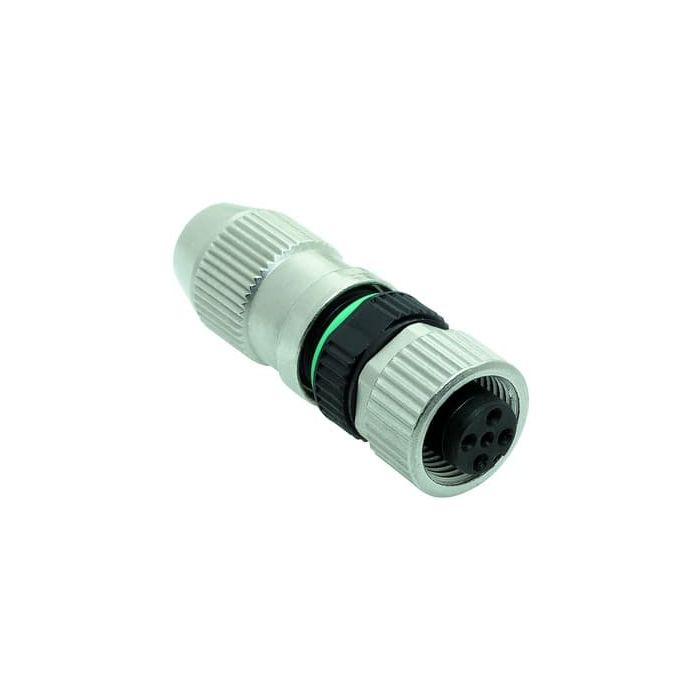

HARAX M12-S female 4-pole
Cable connector, Straight, Female, A-coding, HARAX® connection technology, Polyamide (PA), Contacts: 4, Brass, Gold plated, Conductor cross-section: 0.14...0.34 mm2, Rated current:4 A, Polyamide (PA), Zinc die-cast, Screw locking, Degree of protection: IP65 / IP67, mated condition
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | HARAX Sensor |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 111 2405 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Material housing | Plastic |
| Material contact surface | Gold |
| Cable diameter (mm) | 2.9…5.1 |
| Insertion cycles minimum | 100.0000 |
| Degree of protection - IP (mounted) | IP65/IP67 |
| Maximum operating ambient temperature (deg C) | 85.0000 |
| Rated voltage (V) | 32.0000 |
| Maximum connectable conductor cross section (mm2) | 0.34 |
| Minimum connectable conductor cross section (mm2) | 0.14 |
| Conductor connection method | Insulation displacement termination |
| Pollution degree | 3.0000 |
| Design of housing | straight |
| Interlock type | Threaded joint |
| Screened ? | No |
| Overvoltage category | III |
| Standards | IEC 61076-2-101 |
| Body size | M12 |
| Housing type | Cable |
| Housing material | Plastic |
