21033194501
21033194501
Harting

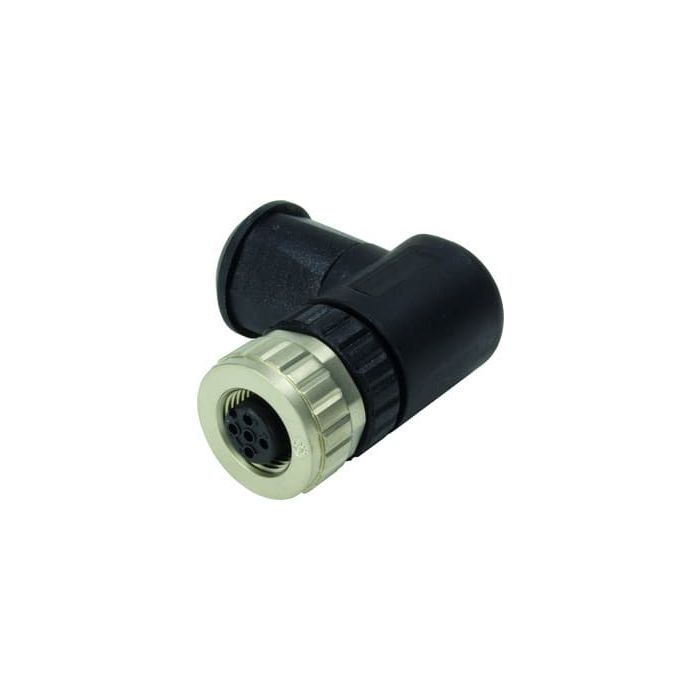

M12-Screw-5P-ACOD-F-ANG
Cable connector, Angled, Female, A-coding, Screw termination, Polyamide (PA), Contacts: 5, Brass, Gold plated, Conductor cross-section: 1.5 mm2 max., Rated current:7.5 A, Polyamide (PA), Zinc die-cast, Screw locking, Degree of protection: IP67, mated condition
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | M8/M12 Screw termination |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 319 4501 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | CZ |
| Manufacturer's Brand | Circular connectors |
| Material housing | Plastic |
| Material contact surface | Gold |
| Cable diameter (mm) | 4…8 |
| Insertion cycles minimum | 100 |
| Degree of protection - IP (mounted) | IP67 |
| Maximum operating ambient temperature (deg C) | 85 |
| Rated voltage (V) | 60 |
| Maximum connectable conductor cross section (mm2) | 1.5 |
| Conductor connection method | Screw connection |
| Pollution degree | 3 |
| Design of housing | angled |
| Interlock type | Threaded joint |
| Screened ? | No |
| Overvoltage category | III |
| Standards | IEC 61076-2-101 |
| Body size | M12 |
| Housing type | Cable, Angled |
| Housing material | Plastic |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
