Harting

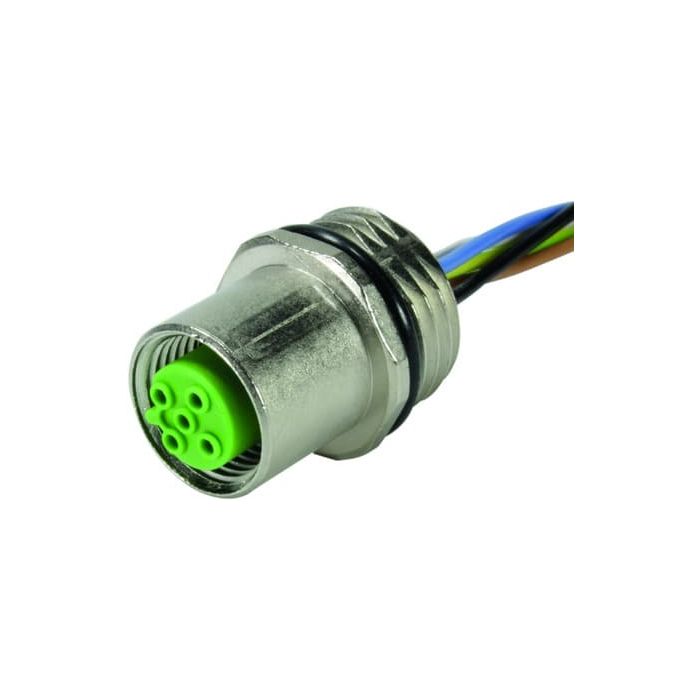

M12 flange socket with wire, 5pol.B-kod
Panel feed through, With conductors, for front mounting,20 cm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | PCB Receptacles M8/M12 |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 339 2301 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Standards | IEC 61076-2-101 |
| Current Rating (A) | 4.0000 |
| Material housing | Zink print cast |
| Material contact surface | Gold |
| Insertion cycles minimum | 100.0000 |
| Degree of protection - IP (mounted) | IP67 |
| Maximum operating ambient temperature (deg C) | 85.0000 |
| Rated voltage (V) | 60.0000 |
| Screen connection present ? | No |
| Plug gender | Female |
| Conductor cross section mm2 | 0.34 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
