21033411505
21033411505
Harting

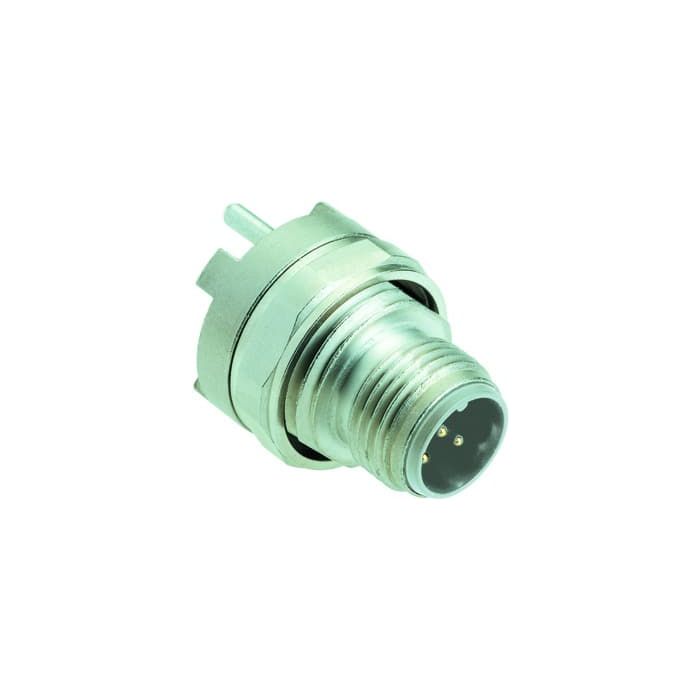

M12-M panel feed through 5pol.B-cod.IP67
Connectors, PCB adapter, Straight, for rear mounting, Reflow soldering termination (THR), Rated current:4 A, Contacts: 5, Copper alloy, Gold plated, Coding: B-coding, Polyamide (PA)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M12 Crimp |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 341 1505 |
| Manufacturer | HARTING |
| Customs tariff number | 85365080 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | RO |
| Number of poles | 5.0000 |
| Material contact surface | Gold |
| Degree of protection - IP (mounted) | IP67 |
| Rated voltage (V) | 50.0000 |
| Contact design | Pin |
| Material of insulation | Polyamide |
| Interlock type | Screw |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | THR connection |
| Locking system | Screw flange |
| Material contact | Other copper alloys |
| Current Rating (A) | 4.0000 |
