21033811431
21033811431
Harting

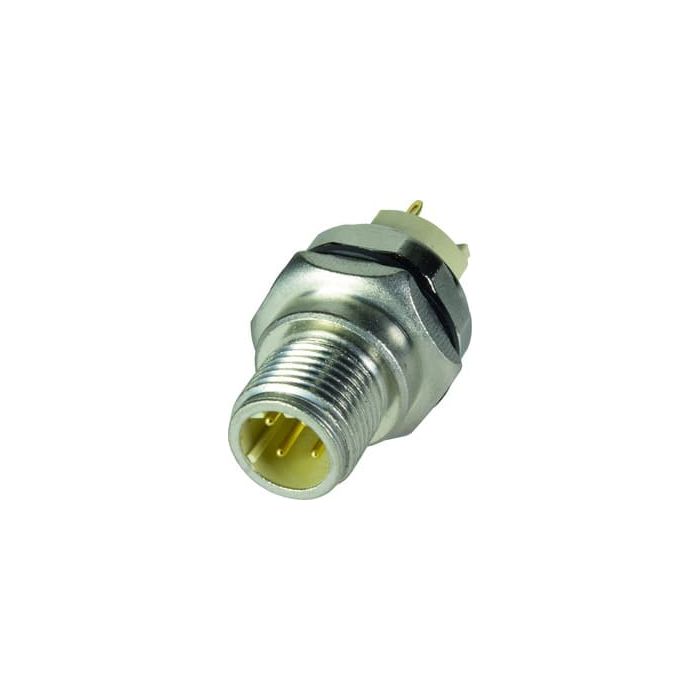

PCB receptacle male front D-cod 4-pole
Connectors, PCB adapter, Straight, incl. housing, for front mounting, Reflow soldering termination (THR), Rated current:4 A, Contacts: 4, Copper alloy, Gold plated, Coding: D-coding, Liquid crystal polymer (LCP)
In stock
| Attribute | Value |
|---|---|
| Product Segment | PCB Receptacles M8/M12 |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 381 1431 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | RO |
| Number of poles | 4 |
| Material contact surface | Gold |
| Degree of protection - IP (mounted) | IP65/IP67 |
| Rated voltage (V) | 50 |
| Contact design | Pin |
| Material of insulation | Liquid crystal polymer |
| Interlock type | Screw |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | THR connection |
| Locking system | Screw flange |
| Material contact | Other copper alloys |
| Current Rating (A) | 4 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
