21033812825
21033812825
Harting

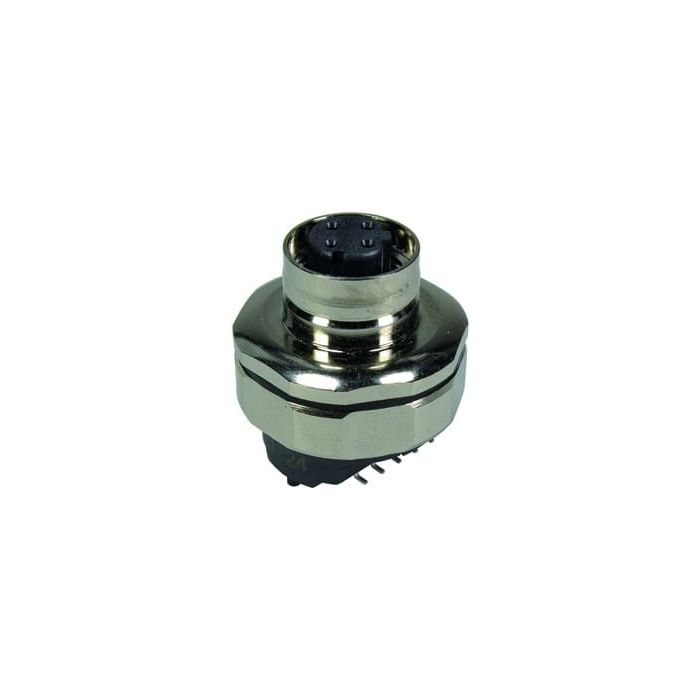

M12 MAGNETICS X.CODED STRAIGHT POE 10 GB
Connectors, PCB adapter, with integrated transformer, Straight, incl. housing, Power over Ethernet (PoE+), for front mounting, Reflow soldering termination (SMT), Rated current:0.8 A, Contacts: 8, Brass, Gold plated, Coding: X-coding, Liquid crystal polymer (LCP)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | PCB Receptacles M8/M12 |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 381 2825 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | CN |
| Number of poles | 8.0000 |
| Material contact surface | Gold |
| Degree of protection - IP (mounted) | IP65/IP67 |
| Rated voltage (V) | 57.0000 |
| Contact design | Socket |
| Material of insulation | Liquid crystal polymer |
| Interlock type | Screw |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | Reflow soldering termination (SMT) |
| Locking system | Screw flange |
| Material contact | Brass |
| Current Rating (A) | 0.8 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
