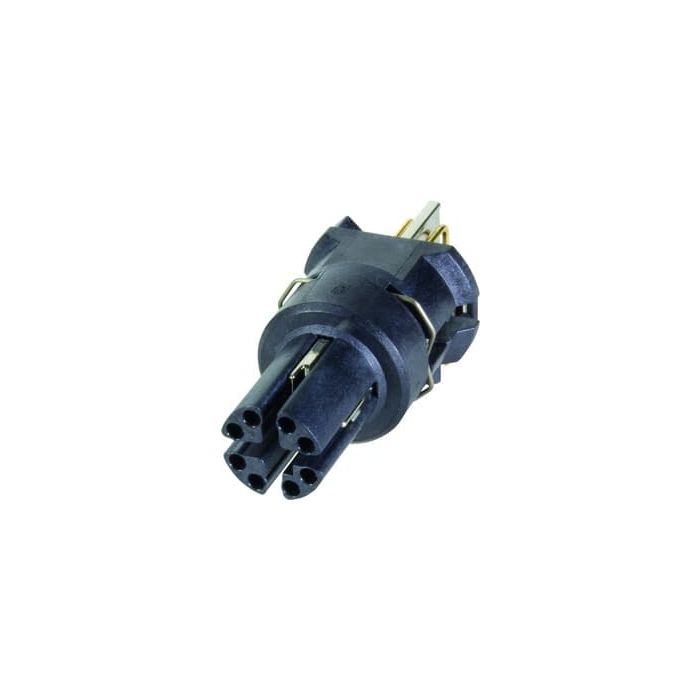

21033814806
21033814806
Harting
M12 CAT6a Bu gewinkelt
Connectors, PCB adapter, Angled, Reflow soldering termination (THR), Rated current:0.5 A, Contacts: 8, Copper alloy, Gold plated, Coding: X-coding, Liquid crystal polymer (LCP)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | PCB Receptacles M8/M12 |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 381 4806 |
| Manufacturer | HARTING |
| Customs tariff number | 85444995 |
| Quantity Min | 30.0000 |
| Quantity Interval | 30.0000 |
| Country of origin | RO |
| Type of packaging | 30 pieces in a tray |
| Number of poles | 8.0000 |
| Material contact surface | Gold |
| Rated voltage (V) | 50.0000 |
| Contact design | Socket |
| Material of insulation | Liquid crystal polymer |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | THR connection |
| Material contact | Other copper alloys |
| Current Rating (A) | 0.5 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
