21033962530

21033962530

21033962530

Harting

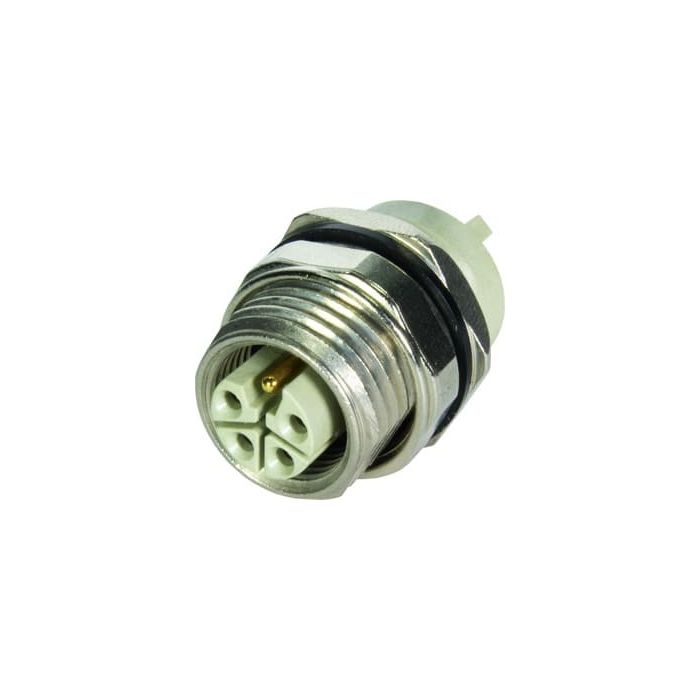

PCB recept housing and insert back 1pc

Connectors, PCB adapter, Straight, incl. housing, for rear mounting, Reflow soldering termination (THR), Rated current:16 A, Contacts: 4, Copper alloy, Gold plated, Coding: L-coding, Polyamide (PA), Grey
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment M12 Power
Product Family Circular Connectors
Product Brand Name 21 03 396 2530
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1.0000
Quantity Interval 1.0000
Country of origin RO
Number of poles 4.0000
Material contact surface Gold
Degree of protection - IP (mounted) IP65/IP67
Rated voltage (V) 63.0000
Contact design Socket
Material of insulation Polyamide
Interlock type Screw
Coating plug contact area Gold (au)
Type of PCB contacting THR connection
Locking system Screw flange
Material contact Other copper alloys
Current Rating (A) 16.0000
More Information
Attribute Value
Data Sheet Click here to view
