21038213805
21038213805
Harting

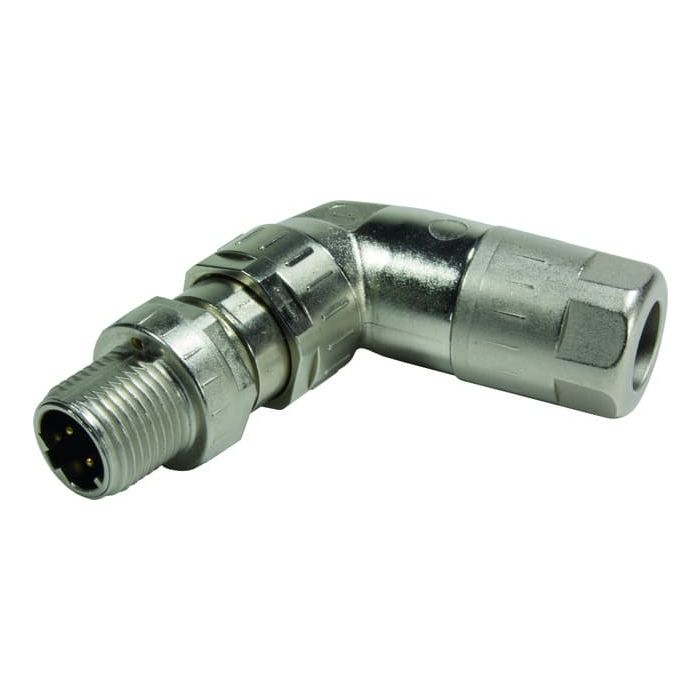

M12 slim angled male A-cod 8-pol
Cable connector, Angled, Male, A-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 8, Conductor cross-section: 0.13...0.33 mm2, Rated current:2 A, Zinc die-cast, Screw locking, Degree of protection: IP65 / IP67, mated condition
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M12 Slim Design |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 821 3805 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Circular connectors |
| Material housing | Zink |
| Cable diameter (mm) | 5.7…8.8 |
| Insertion cycles minimum | 500.0000 |
| Degree of protection - IP (mounted) | IP65/IP67 |
| Maximum operating ambient temperature (deg C) | 85.0000 |
| Maximum connectable conductor cross section (mm2) | 0.33 |
| Minimum connectable conductor cross section (mm2) | 0.13 |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Design of housing | angled |
| Interlock type | Threaded joint |
| Screened ? | Yes |
| Overvoltage category | III |
| Standards | IEC 61076-2-101 |
| Body size | M12 |
| Housing type | Cable, Angled |
| Housing material | Zink |
