21043162501
21043162501
Harting

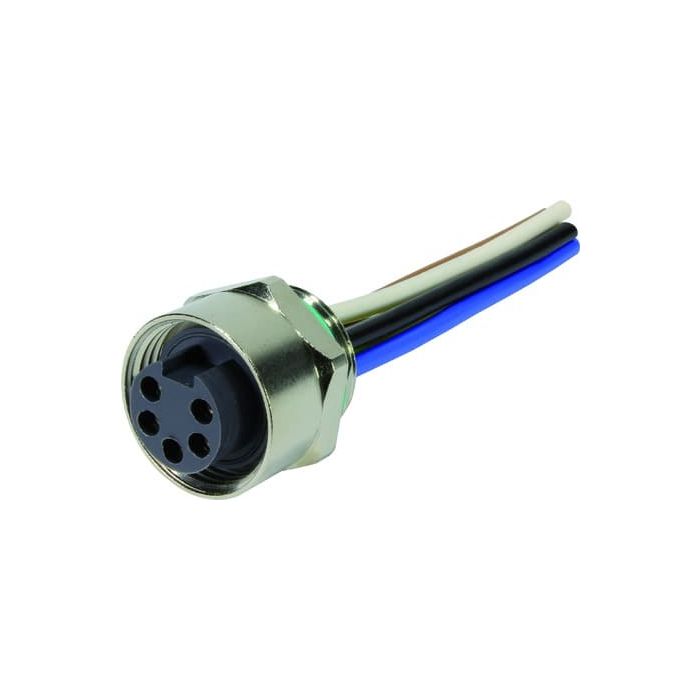

7/8 Cable Assembly 4p+PE st/- f/- 0,5m
Panel feed through, With conductors, for front mounting,50 cm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | PCB Receptacles M8/M12 |
| Product Family | Circular Connectors |
| Product Brand Name | 21 04 316 2501 |
| Approvals | CE |
| Manufacturer | HARTING |
| Customs tariff number | 85444290 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Current Rating (A) | 10.0000 |
| Material housing | Brass |
| Material contact surface | Gold |
| Insertion cycles minimum | 100.0000 |
| Degree of protection - IP (mounted) | IP67 |
| Maximum operating ambient temperature (deg C) | 85.0000 |
| PE connection present ? | Yes |
| Screen connection present ? | No |
| Plug gender | Female |
| Conductor cross section mm2 | 1.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
