2110-240

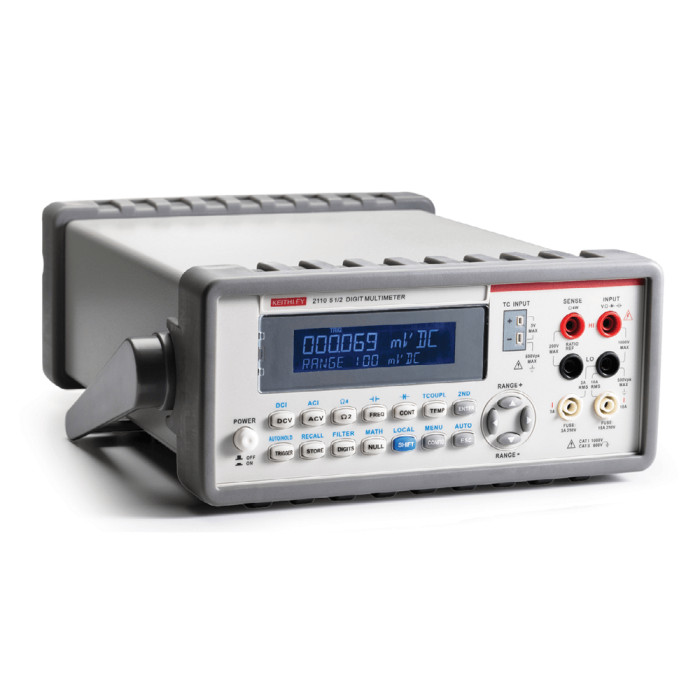

The 2110-240 5.5 Digit Dual-Display Digital Multimeter combines a compelling price with a comprehensive set of capabilities, superior measurement accuracy, and high speed for a broad range of applications. The Keithley 2110-240 features 15 measurement functions and 7 math functions and has dual-line display capability, which allows it to display two different measurements concurrently. The Keithley 2110-240 is an unbeatable value for production, R&D, and test engineers, scientists, and students making a wide variety of measurements in portable, bench, and system applications.

High Accuracy, Abundant Capabilities, Low Cost

The 2110-240 provides precision and a rich set of capabilities at a value price. It has 0.012% one-year basic DC voltage accuracy and 0.020% one-year basic resistance accuracy up to the 100 kΩ range.

Speed

At 5.5 digits, the Keithley 2110 delivers up to 200 readings/s via the USB remote interface. At the fast 4.5 digit setting, it reads up to 50,000 readings/s and up to 30,000 readings/s into the buffer, making it ideal for production and monitoring applications in which speed is critical.

Simplicity

The Keithley 2110-240 is operational and intuitive to use right out of the box. The functions on the front panel are user-friendly and easy to read. It's KITool and KI-Link software allows users to quickly control the instrument over USB, record measurements and display time-series plots of the data. Its LabView® and IVI drivers give more-advanced customers even more control over the instrument. The TMC-compliant USB remote interface allows easy re-use of existing SCPI programs.
