21330800850003
21330800850003
Harting

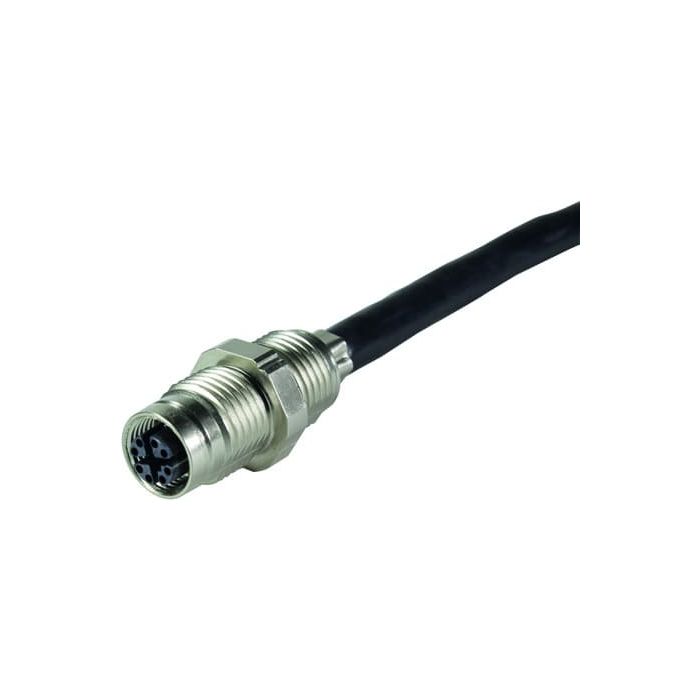

M12 PFT Crimp 8-pole x-coded female 0.3m
Panel feed through, Pre-assembled on one side, Industrial Ethernet cable (4x 2x AWG 26/7), for rear mounting, Cable length: 0.3 m
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Segment | har-speed M12 |
Product Family | Circular Connectors |
Product Brand Name | 21 33 080 0850 003 |
Manufacturer | HARTING |
Customs tariff number | 85444290 |
Quantity Min | 1.0000 |
Quantity Interval | 1.0000 |
Country of origin | RO |
Manufacturer's Brand | Circular connectors |
Standards | IEC 61076-2-109 |
Current Rating (A) | 0.5 |
Material housing | Zink print cast |
Material contact surface | Gold |
Insertion cycles minimum | 100.0000 |
Degree of protection - IP (mounted) | IP65 / IP67 |
Maximum operating ambient temperature (deg C) | 85.0000 |
Rated voltage (V) | 50.0000 |
Screen connection present ? | Yes |
Plug gender | Female |
Cable length (M) | 0.3 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
