2170016
2170016
LAPP Cable

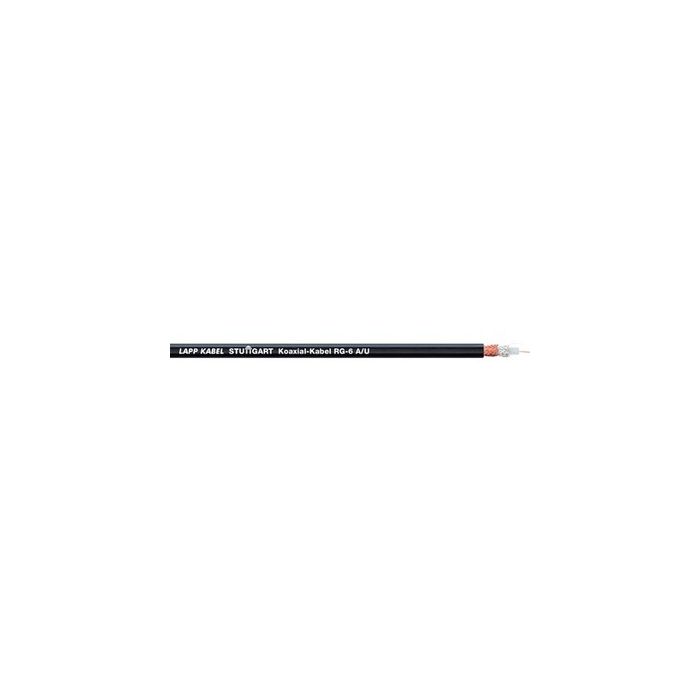

Coaxial cable - RG Series
Fixed installation and conditional flexible use in dry or damp interiors and outdoors. Temperature range from -55°C to +250°C
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Approvals | Similar to MIL-DTL17 H |
| Benefits |
|
| Outdoor Use | Yes |
| Cold resistant | Yes |
| UV Resistant | Yes |
| Interference rejecting | Yes |
| Outer Diameter (mm) | 8.4 |
| Copper index kg per km | 72.0000 |
| Characteristic impedance | 75 +/- 3 Ω |
| Product Make Up |
|
| Test Voltage | 5 kV |
| Capacity pF/m | 67 |
| Propagation rate (%) | 66 |
| Operating voltage 50 Hz eff. kV | 2 |
| Inner Conductor Material | StCuMbl |
| Internal Diameter (mm) | 0.72 |
| Dielectric Material | PE |
| Dielectric Diameter (mm) | 4.7 |
| Outer Conductor Material | Cbl |
| Outer Sheath Material | PVC |
| Classification ETIM 5 |
ETIM 5.0 Class-ID: EC000019 ETIM 5.0 Class-Description: Coaxial cable |
| Classification ETIM 6 |
ETIM 6.0 Class-ID: EC000019 ETIM 6.0 Class-Description: Coaxial cable |
| Dielectric Constant |
Polyethylene (PE) 2.3 Polyethylene, hollow (PE-ho) 1.5 Polytetrafluoroethylene (PTFE) 2.1 |
| Minimum Bending Radius | Fixed installation: 6 x outer diameter |
| Weight kg per km | 120.0000 |
| Temperature Range |
Fixed installation: PE outer sheath: -40°C to +80°C Fixed installation: PVC outer sheath: -40°C to +80°C Fixed installation: fluoroplastic -55°C to +250°C |
| Applications |
|
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
