LAPP Cable
Ethernet cable Category 5e, Class D for fixed installation - verified up to 100 MHz
Industrial Ethernet cable Cat.5e for fixed installation; halogenfree or PUR (AWM-approval) outer sheath material, design 2 or 4 x2xAWG24/1
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
2170280 Specifications
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
- PUR outer sheath is highly resistant to mineral oils and abrasion
- Halogen-free outer sheath
| Attribute | Value |
|---|---|
| Product Brand Name | ETHERLINE® Cat.5e |
| Approvals | PUR versions: UL AWM Style 21576 | Flame retardant acc. to IEC 60332-1-2 | Halogenfree cables: halogenfree according to IEC 60754-1, IEC 60754-2 | PUR cables: halogenfree acc. to VDE 0472-815 |
| Approvals |
|
| Extended Description |
Benefits
|
| Benefits | Seamless communication from the sensor/actuator level to the Internet | Screened against interference | Can be used in dry or damp rooms | Can be used for Industrial Ethernet in harsh industrial environments | cables with PUR jacket: 1000 V UL- rating for installation next to power cables |
| Halogen free | Yes |
| Interference rejecting | Yes |
| Number of conductors | 2 |
| AWG per Conductor | 24 |
| Outer Diameter (mm) | 5.6 |
| Copper index kg per km | 22 |
| Characteristic impedance | nom. 100 Ω acc. to IEC 61156-5 |
| Characteristic impedance |
|
| Test Voltage |
|
| Benefits |
|
| Product Make Up |
|

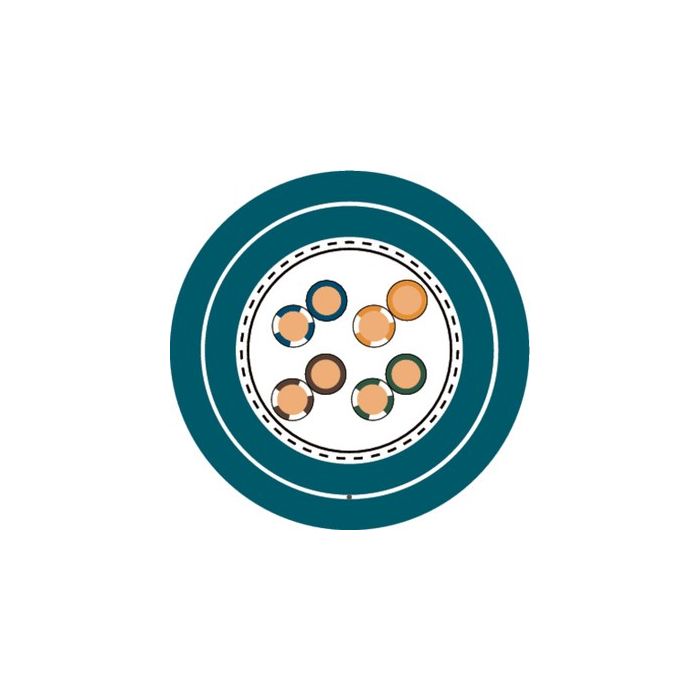

| Product Make Up | Solid conductor | Core insulation made of foam skin | 2 or 4-pair version | SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening | Outer sheath as either PUR or LSZH | Colour: water blue (similar to RAL 5021) |
| Test Voltage | Core/core: 1000 V | Core/screen: 500 V |
| Minimum Bending Radius | Fixed installation: 7.5 x outer diameter | Fixed installation: 8 x outer diameter (4 pair cable) |
| Minimum Bending Radius |
|
| Peak operating voltage | 125 |
| Temperature Range |
|
| Technical Data |
Minimum bending radius
|
| Applications |
|
| Weight kg per km | 45 |
| Temperature Range | Fixed installation: -30°C to +80°C | During installation: -5°C to +50°C |
| Applications | 2pair: 10/100 Mbit/s for Industrial Ethernet | 4pair: 10/100/1000 Mbit/s for Industrial Ethernet | suitable for EtherCAT and EtherNet/IP applications | Industrial use | Fixed Installation |
| Features | High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference | PUR outer sheath is highly resistant to mineral oils and abrasion | Halogen-free outer sheath |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
