LAPP Cable

Ethernet cable Category 5e, Class D for flexible use - verified up to 100 MHz

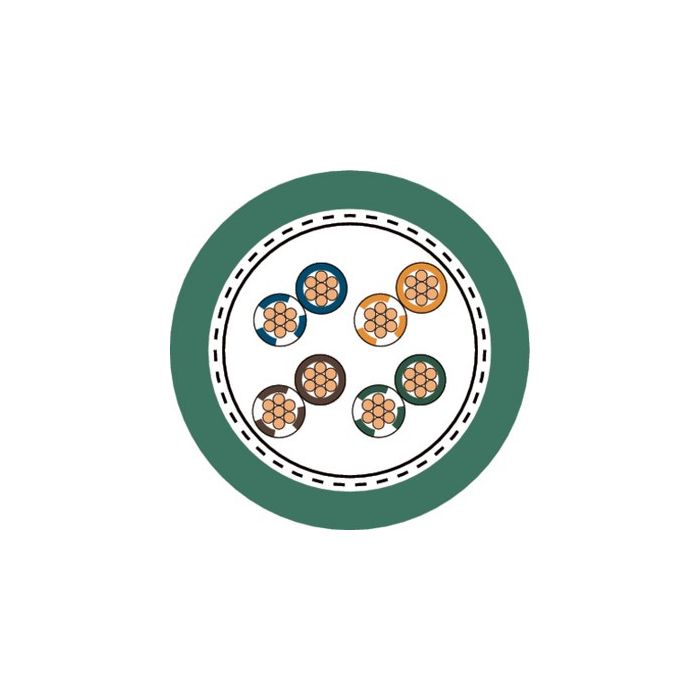

main product photo
Industrial Ethernet cable Cat.5e for flexible use; halogenfree or PUR (AWM-approval) outer sheath material, design 2 or 4 x2xAWG26/7
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name ETHERLINE® Cat.5e FLEX
Approvals
  • PUR cables: halogenfree acc. to VDE 0472-815
  • PVC version with UL/CSA (CMX) certification
  • PUR versions: UL AWM Style 21576
  • Flame-retardant according IEC 60332-1-2
  • halogenfree to IEC 60754-1, IEC 60754-2
Extended Description Benefits
  • Seamless communication from the sensor/actuator level to the Internet
  • Screened against interference
  • Can be used in dry or damp rooms
  • Can be used for Industrial Ethernet in harsh industrial environments
  • cables with PUR jacket: 1000 V UL- rating for installation next to power cables
Applications
  • 2pair: 10/100 Mbit/s for Industrial Ethernet
  • 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
  • suitable for EtherCAT and EtherNet/IP applications
  • For flexible applications (7-wire stranded conductor)
  • Only for patch cable applications (max. 60 m)
Features
  • High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
  • PUR outer sheath is highly resistant to mineral oils and abrasion
Product make up
  • Stranded conductor, bare, 7-wire
  • Core insulation made of foam skin
  • 2 or 4-pair version
  • SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
  • Outer sheath as either PVC, PUR or LSZH
  • Colour: water blue (similar to RAL 5021)
  • PVC jacket colour: green (similar to RAL 6018)
Halogen free Yes
Interference rejecting Yes
Number of conductors 2x2
AWG per Conductor 26
Outer Diameter (mm) 5.6
Copper index kg per km 19.0000
Characteristic impedance nom. 100 Ω acc. to IEC 61156-5
Characteristic impedance
  • nom. 100 Ω acc. to IEC 61156-5
Peak operating voltage 125
Technical Data Minimum bending radius
  • Fixed installation: 8 x outer diameter
  • Flexing: 15 x outer diameter
Test voltage
  • Core/core: 1000 V
  • Core/screen: 500 V
Peak operating voltage voltage
  • 125 V
Characteristic impedence
  • nom. 100 Ω acc. to IEC 61156-5
Temperature range
  • Fixed installation: -30°C to +80°C
  • Flexing: -5°C to +50°C
Weight kg per km 45.0000
