2170297

2170297

LAPP Cable

Ethernet cable Category 5e, Class D for fixed installation - verified up to 100 MHz

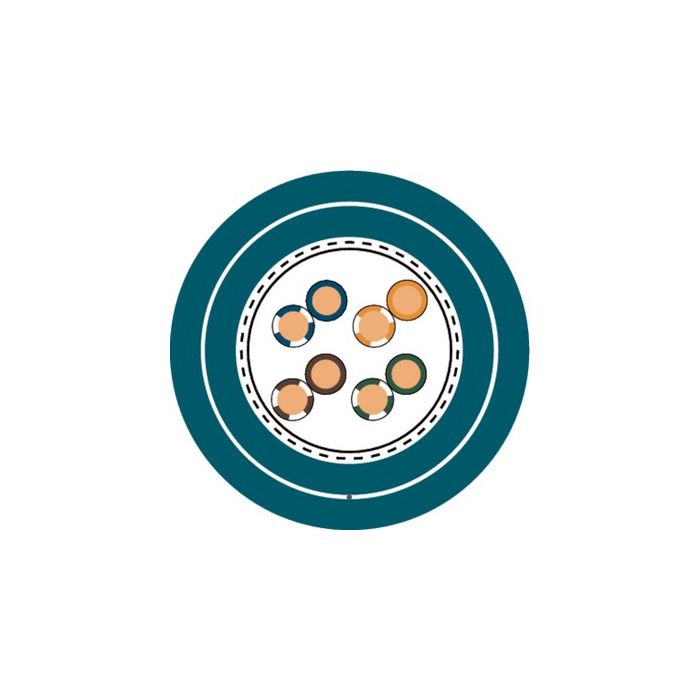

main product photo
Industrial Ethernet cable Cat.5e for fixed installation; halogenfree or PUR (AWM-approval) outer sheath material, design 2 or 4 x2xAWG24/1
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name ETHERLINE® Cat.5e
Approvals
  • PUR versions: UL AWM Style 21576
  • Flame retardant acc. to IEC 60332-1-2
  • Halogenfree cables: halogenfree according to IEC 60754-1, IEC 60754-2
  • PUR cables: halogenfree acc. to VDE 0472-815
Extended Description Benefits
  • Seamless communication from the sensor/actuator level to the Internet
  • Screened against interference
  • Can be used in dry or damp rooms
  • Can be used for Industrial Ethernet in harsh industrial environments
  • cables with PUR jacket: 1000 V UL- rating for installation next to power cables
Applications
  • 2pair: 10/100 Mbit/s for Industrial Ethernet
  • 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
  • suitable for EtherCAT and EtherNet/IP applications
  • Industrial use
  • Fixed Installation
Features
  • High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
  • PUR outer sheath is highly resistant to mineral oils and abrasion
  • Halogen-free outer sheath
Product make up
  • Solid conductor
  • Core insulation made of foam skin
  • 2 or 4-pair version
  • SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
  • Outer sheath as either PUR or LSZH
  • Colour: water blue (similar to RAL 5021)
Halogen free Yes
Interference rejecting Yes
Number of conductors 4
AWG per Conductor 24
Outer Diameter (mm) 6.1
Copper index kg per km 32.0000
Characteristic impedance nom. 100 Ω acc. to IEC 61156-5
Characteristic impedance
  • nom. 100 Ω acc. to IEC 61156-5
Peak operating voltage 125
Technical Data Minimum bending radius
  • Fixed installation: 7.5 x outer diameter
  • Fixed installation: 8 x outer diameter (4 pair cable)
Test voltage
  • Core/core: 1000 V
  • Core/screen: 500 V
Peak operating voltage voltage
  • 125 V
Characteristic impedence
  • nom. 100 Ω acc. to IEC 61156-5
Temperature range
  • Fixed installation: -30°C to +80°C
  • During installation: -5°C to +50°C
Weight kg per km 62.0000
