HAEFELY AG

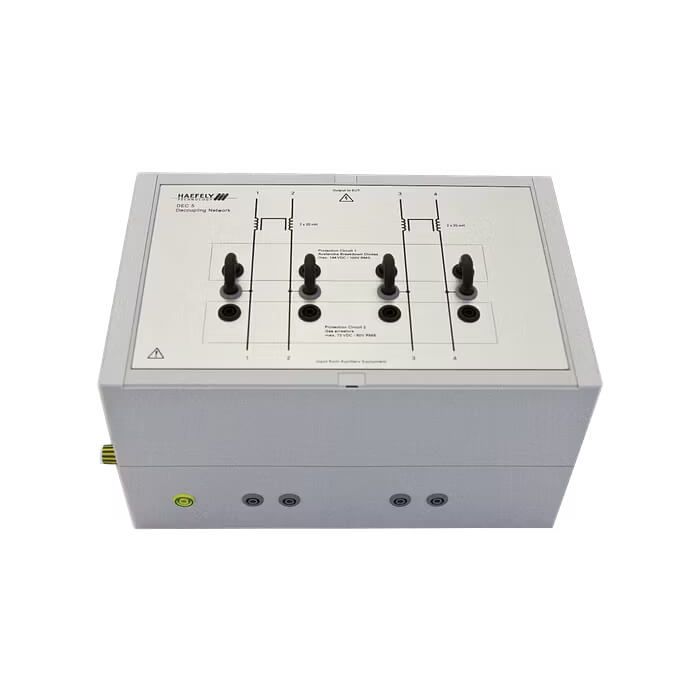

DEC 5 - Decoupling Network For Symmetrical Data And Contorl Lines
The Haefely DEC 5 is used for decoupling auxiliary equipment from an EUT tested with either 1,2/50 us - 8/20 us combination wave impulses or 10/700 us impulses up to 6.6 kV peak.
It is used to decouple unshielded symmetrical data and signal lines according to standards IEC 61000-4-5 and ITU K.44. Up to 4 wires can be tested simultaneously.
To obtain maximum flexibility, only decoupling and protection elements are included in the DEC 5. Coupling circuits, which depend on the EUT to be tested, can be placed separately in the test setup.
Manual coupling selection of the protection elements for the best protection of the auxiliary equipment. Default protection elements are gas arrestors and breakdown avalanche diodes.
With such elements, the capacitive load to the EUT lines is small. The decoupling elements can be selected easily. It is also possible to test without any protection elements.
Key Features
- Inductors 20 mH compensated
- Combination wave 1.2/50 us - 8/20 us impulses 10/700 us telecom impulses
- 100 kHz ring wave impulses
- Breakdown avalanche diodes and gas arrestors as protection elements
- Up to 4 wires can be tested
- Signal Bandwidth up to some 100 kHz
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 300 x 160 x 200 mm (11.8 x 6.3 x 7.9 in) |
| Weight | approx.. 9 kg Net. (19.8 lb) |
| Impulse Amplitude | max. 6.6 kV |
| Current On EUT Lines | max. 1 A |
| Signal Bandwidth For The EUT Signals | Up to some 100 kHz Up to some 100 kBaud |
| Decoupling Elements | 20 mH current compensated (two inductors with two coils each) |
| Voltage On EUT lines | max. 72 VDC OR 50 VAC, RMS (with gas arrestors as protection elements) max. 144 VDC or 100 VAC, RMS (with ABDs as protection elements) |
