AXOS5 Voltage Dips - EMC Test System (Voltage Dips) according to IEC/EN 61000-4-11

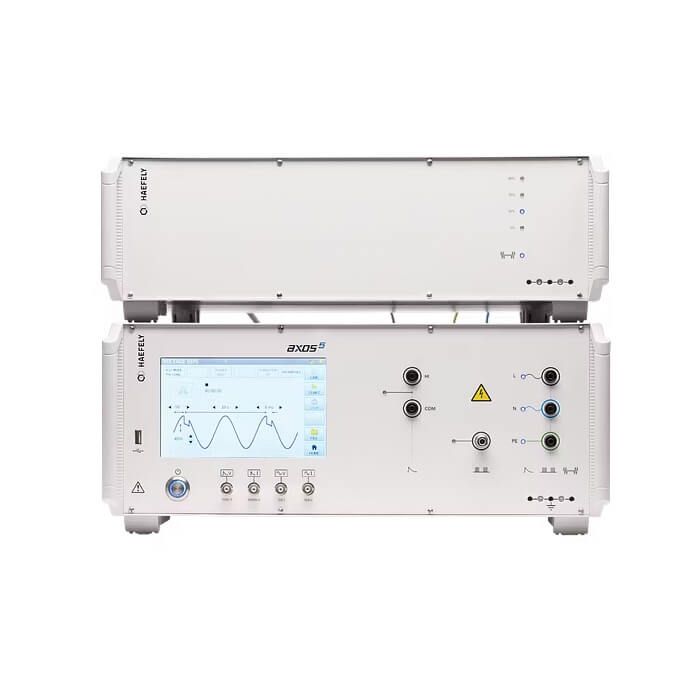

Voltage Dip Test System That Combines The Haefely AXOS 5 And The DIP 116
This system will automatically perform AC voltage dips at 0 %, 40 %, 70 %, 80 % of V input. An integrated single phase coupling decoupling network (CDN) allows for EMC testing applications up to 16 A.
If DC voltage testing is required, only the AXOS 5 is necessary. The AXOS 5 - Voltage Dips can be upgraded to perform 5 kV EFT/Burst, 5 kV Combination Wave (1.2/50 us & 8/20 us) and Pulsed Magnetic Field tests via software and/or hardware upgrades.
The expandable functionality allows for quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards.
The AXOS unit can either be operated via front panel by the large colour graphic interface or remotely from a PC. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequent users.
Numerous additional functions such as external start/stop function allows easy integration of the test system in customer specific test environments.
Key Features
- Easy to operate with manual and automated test modes, software assisted test preparation, pre-defined test routines and visual aided test setups
- Economic and Efficient: Touch screen guarantees reduction of time and effort - Experience and know-how at a reasonable price
- Multiple testing functions available in a single unit
- Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions
- Voltage and current monitoring of surge impulses and EUT power provides valuable feedback to the test engineer
- Automatic generation of test report, including test parameters, test setup and test result
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | Mains Cable, User Manual, Calibration certificate |
| Dimensions | 19“ / 4U (45 x 18 x 49 cm) |
| Weight | 25 kg |
| Standards |
IEC/EN 61000-4-11 (AC 50/60 Hz) |
| Applications |
|
| Control Power | 85 V - 264 V; 50/60Hz |
| User Test Storage | Unlimited |
| Remote Interface | Ethernet, RJ45 |
| Display | 7“ / 800x480 / 24 bit with touchscreen |
| External Trigger Input | 5 V TTL |
| Trigger Output | 5 V TTL |
| EUT Failed Input | 5 V TTL |
| Warning Lamp Output | 2 x 24 V / 1 A DC |
| USB | For USB memory stick |
| AUX Interface | D-sub 37p for external CDN, external transformer etc… |
| Sync Input | BNC, 10 V – 264 V AC |
| External Start/Stop Input | 5 V TTL, starts / stops predefined test sequence |
| Analogue Output | 0-10 V, for use with external options |
| Safety Circuit | Stops the test when unlocked |
| DIPS & Interrupts: Max. Voltage | 264 V AC/DC |
| DIPS & Interrupts: Max. Current |
16 A AC/DC continuous |
| DIPS & Interrupts: Trigger | Automatic, manual, external |
| DIPS & Interrupts: Dip Level |
0% |
| DIPS & Interrupts: RMS Voltage Monitor | BNC output: 100:1 display: 3 digits |
| DIPS & Interrupts: Interrupt Time |
0.5 period – 800 periods |
| DIPS & Interrupts: Interval Time |
1 period – 800 periods |
| DIPS & Interrupts: Test Time | 1 s–1000 minutes, infinite |
| DIPS & Interrupts: Phase Sync | 0–359°, 50 / 60 Hz, external, asynchronous mode |
| DIPS & Interrupts: RMS Current Monitor | BNC output: 10 A/V display: 3 digits |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
