HAEFELY AG

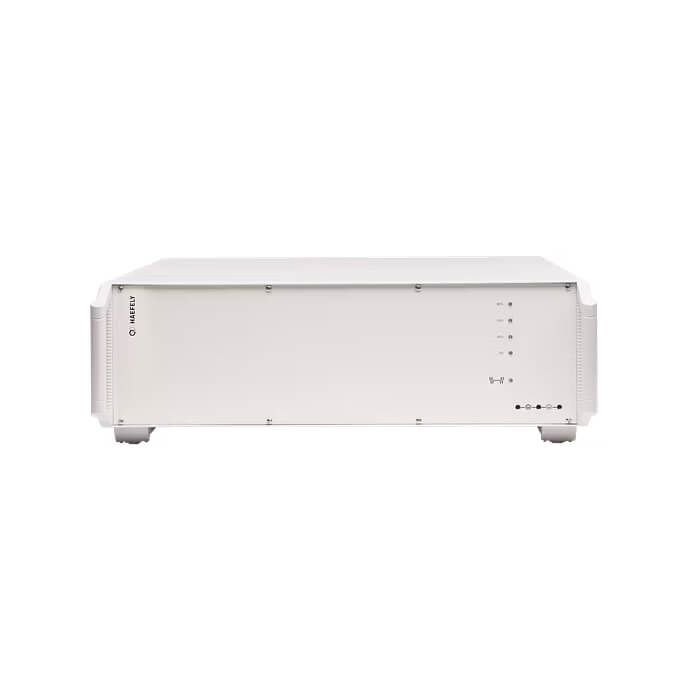

DIP 116 - Automatic Dips Transformer for AXOS test systems According To IEC/EN 61000-4-11
Automatic Dips Single-phase Transformer
The Haefely DIP 116 is an automatic dips single-phase transformer and can be used to simulate power supply failures as Voltage Dips and Interrupts at 0 %, 40 %, 70 %, 80% of AC Voltage input.
It is designed as an accessory for the Haefely AXOS series. The DIP 116 is compliant to IEC/EN 61000-4-11. Voltage dips and short interruptions are caused by faults in the network. These are primarily short circuits in installations or due to sudden, large changes in load.
Key Features
- Automatically controlled Voltage Dips for 0 %, 40 %, 70 %, 80% (via AXOS)
- LED Light indicator for active Voltage Dips per cent
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | DIP 116 Module Blue bonding cable 0.25 m Black bonding cable 0.25 m Yellow/Green bonding cable 0.25 m Test Certificate Purple bonding cable 0.25 m Earth bonding cable 1 m D-sub 37p cable 1 m |
| Dimensions | 450 x 490 x 140 mm (17.7 x 19.3 x 5.5 in) |
| Weight | 21 kg |
| Standards |
IEC/EN 61000-4-11 |
| Applications |
|
| Mains Power Supply | Powered by AXOS 5 / AXOS 8 |
| Max. Input Current |
16 A AC Continuous (100%) |
| Switch Time (100 Ω) | 1 µs – 5 µs |
