HAEFELY AG

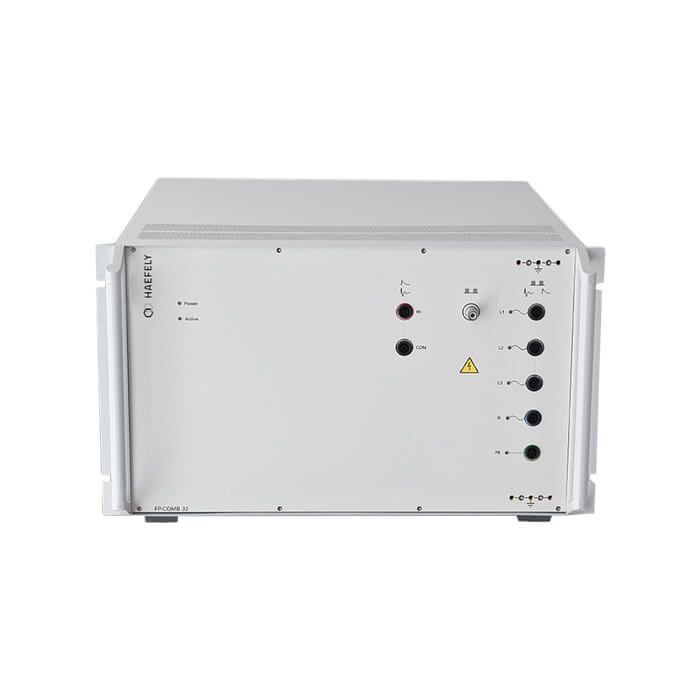

FP-COMB 32 - Combined Automatic i3-Phase Coupling/Decoupling Network
The Haefely FP-COMB 32 is a combined automatic three-phase Coupling/Decoupling Network (CDN) for Surge Combination Wave, Ring Wave and EFT/Burst testing
It is fully compliant with the standard requirements of IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-12, ANSI C62.41 and others.
It is designed to allow users to efficiently set up and perform tests together with the Haefely AXOS series expandable immunity test systems. The CDN automatically changes the coupling paths, phase angles and source impedance based on test parameters set by the user via the AXOS 5 and/or AXOS 8 controllers.
Key Features
- Surge Combination Wave, 1.2/50 us - 8/20 us
- Ring Wave, 100 kHz
- Electrical Fast Transient (EFT) / Burst
- 7 kV impulse voltage for Surge Combination Wave and Ring wave
- 5 kV impulse voltage for EFT/Burst
- Line voltage 480 VAC phase-to-phase and 480 VDC
- 32 A EUT current per phase
- Automatic phase angle synchronisation for each coupling path
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Coupling |
CDN Inputs: Banana socket front panel - 5 connectors CDN Outputs: Banana socket front panel - 5 connectors Waveforms: EFT / Burst - IEC / EN 61000-4-4 Ed.3 Surge Combination Wave - IEC / EN 61000-4-5 Ed.3 Ring Wave - IEC / EN 61000-4-12 Ed.3 Maximum EFT / Burst Input Voltage: 5 kV Maximum Surge Combination Wave Input Voltage: 7 kV Maximum Ring Wave Input Voltage: 7 kV Coupling Path Selection: Automatic - IEC + ANSI Synchronisation: 10 V to 480 V input voltage 0⁰ to 359⁰, step 1⁰ - Sync. On coupling path, output BNC rear panel |
| Decoupling |
Voltage AC: Up to 480 V AC, 16.7 Hz, 50 Hz, 60 Hz Voltage DC: Up to 480 V DC Nominal Current: 32 A EFT / Burst Input Voltage Range: 0.2 kV – 5 kV Surge Combination Wave Input Voltage Range: 0.2 kV – 7 kV Ring Wave Input Voltage Range: 0.2 kV – 7 kV Coupling Path Selection: Automatic Synchronisation: 10 v to 480 V input voltage, 0⁰ to 359⁰, step 1⁰ |
| Interface |
Extension Connector (37 pol. Sub-D connector): Warning on AXOS Display LEDs: Indication of coupling path Power ON LED, CDN active LED |
