HAEFELY AG

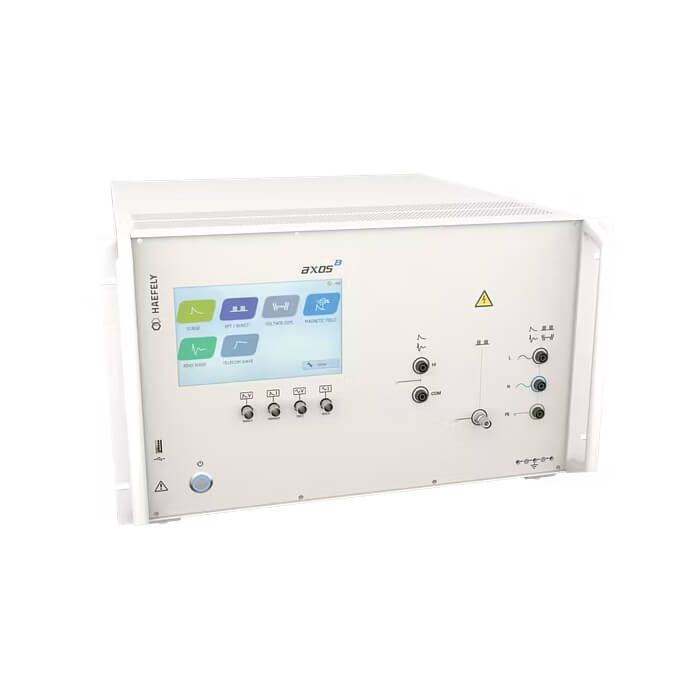

AXOS8 Surge - EMC Test System (Surge Combination Wave) According To IEC/EN 61000-4-5
Stand-alone 7 kV Combination Wave Generator
The AXOS 8 - Surge CW (Combination Wave) is a stand-alone 7 kV Combination Wave Generator with an integrated single-phase coupling decoupling network (CDN) for EMC testing applications up to 16 A.
The AXOS 8 - Surge CW can be upgraded to perform 5 kV EFT/Burst, 7 kV Ring Wave, 7 kV Telecom Wave (10/700 us), AC/DC Voltage Dips and Pulsed Magnetic Field tests via software and/or hardware upgrades.
The expandable functionality allows for quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards.
The AXOS unit can either be operated via the front panel by a large colour graphic interface or remotely from the PC. The easy-to-use menu, together with the availability of predefined test routines for different standards, makes testing easy and reliable, even for less frequent users. Numerous additional functions, such as an external start/stop function, allow easy integration of the test system in customer-specific test environments.
Key Features
- Easy to operate with manual and automated test modes, software-assisted test preparation, pre-defined test routines and visually aided test setups
- Economic and Efficient: Touch screen guarantees reduction of time and effort - Experience and know-how at a reasonable price
- Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions
- Voltage and current monitoring of surge impulses and EUT power provides valuable feedback to the test engineer
- Automatic generation of test report, including test parameters, test setup and test result
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | Mains Cable, User Manual, Calibration certificate |
| Dimensions | 19“ / 4U (45 x 18 x 49 cm) |
| Weight | 25 kg |
| Standards |
|
| Applications |
|
| Control Power | 85 V - 264 V; 50/60Hz |
| User Test Storage | Unlimited |
| Remote Interface | Ethernet, RJ45 |
| Display | 7“ / 800x480 / 24 bit with touchscreen |
| External Trigger Input | 5 V TTL |
| Trigger Output | 5 V TTL |
| EUT Failed Input | 5 V TTL |
| Warning Lamp Output | 2 x 24 V / 1 A DC |
| USB | For USB memory stick |
| AUX Interface | D-sub 37p for external CDN, external transformer etc… |
| Sync Input | BNC, 10 V – 264 V AC |
| External Start/Stop Input | 5 V TTL, starts / stops predefined test sequence |
| Analogue Output | 0-10 V, for use with external options |
| Safety Circuit | Stops the test when unlocked |
| Surge Combination Wave: Output Voltage | 0.2–7.0 kV ±10% |
| Surge Combination Wave: Voltage Rise Time | 1.2 µs ±30% |
| Surge Wave Combination: Voltage Duration | 50 µs ±20% |
| Surge Combination Wave: Polarity | Postive / negative / alternate |
| Surge Combination Wave: Output Impedance | 2 Ohm |
| Surge Combination Wave: Phase Sync | 0–359° with 1° steps or asynchronous mode |
| Surge Combination Wave: Counter Preselect | 1–1,000 / infinite |
| Surge Combination Wave: Counter | 100000 |
| Surge Combination Wave: Peak Voltage Monitor | BNC output: 1000:1 display: 3 digits |
| Surge Combination Wave: Output Current | 0.1–3.5 kA ±10% |
| Surge Combination Wave: Current Rise Time | 8 µs ±20% |
| Surge Combination Wave: Current Duration | 20 µs ±20% |
| Surge Combination Wave: Integrated Single Phase CND | 264 V AC / 16 A up to 220 V DC / 10 A |
| Surge Combination Wave: Impulse Trigger | Automatic 2 s - 100 min manual external trigger input |
| Surge Combination Wave: Peak Current Monitor | BNC output: 1 kA/V display: 3 digits |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
