FP-EFT 100M2 - EFT/Burst Test System According To IEC/EN 6100-4-4 Edition 1 & 2 Up To 7.3kV

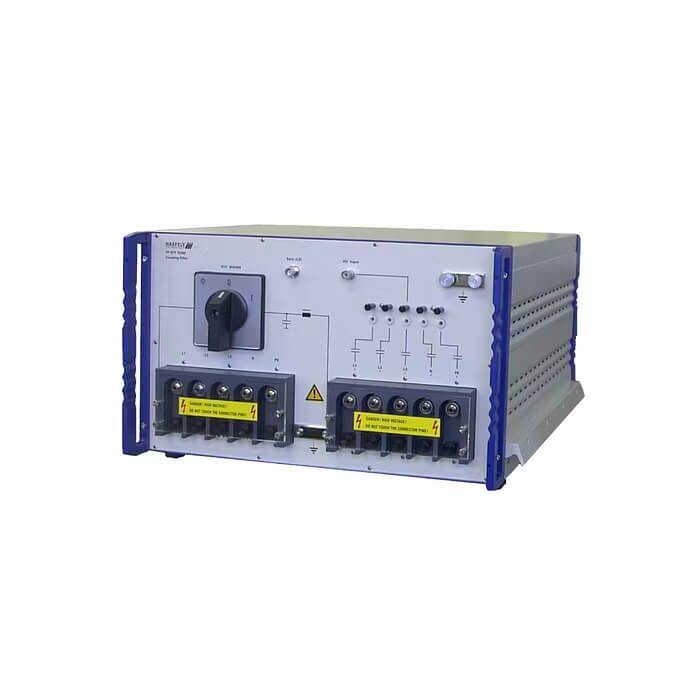

Used together with the Haefely AXOS5, AXOS8, or PEFT 8010, the FP-EFT 100M2 can be used to inject EFT/burst impulses on the three-phase supply.
The FP-EFT 100M2 couples the burst into an EUT while preventing the impulses from polluting the three-phase power supply.
The FP-EFT 100M2 has manual coupling path selection to verify the functionality of each path as recommended in the IEC 61000-4-4 Edition 3: 2015. This can also be used to select different coupling paths according to ANSI standards, which require a path-by-path burst test.
Key Features
- 5/50 ns impulse shape
- 8 kV impulse voltage
- Manual coupling path selection
- 690Vac phase-phase, 400Vac phase-neutral
- 100 A per phase EUT Current
- Phase angle synchronisation is possible
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 300 x 160 x 200 mm (11.8 x 6.3 x 7.9 in) |
| Weight | approx.. 6 kg Net. (13.2 lb) |
| Device |
Maximum Impulse Voltage: 8 kV Burst Maximum AC Voltage: 690 V (Phase-Phase), 400 V (Phase-Neutral) Maximum DC Voltage: 110 V Maximum AC Current: 100 A Maximum DC Current: 100 A Mains Connection: 4 mm safety banana sockets EUT Connections: 4 mm safety banana sockets Phase Sync. Source: fixed between L3 and PE Coupling Paths: Manual selection Residual Pulse Voltage at Line Input: max. 10% of the applied impulse amplitude |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
