HAEFELY AG

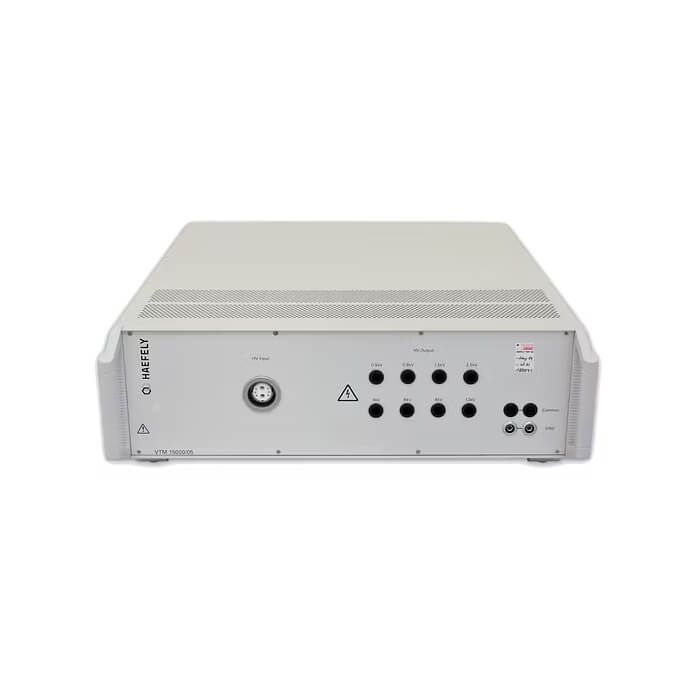

VTM 15000/05 - Impulse Transformer For Isolation Testing Which Multiplies The Input Voltage By Two
VTM 15000/05
The VTM 15000/05 is a voltage transformer which multiplies the input voltage by two; the voltage wave shape remains the same.
The VTM 15000/05 is used for insulation tests with a 1.2/50 us impulse, such as specified in IEC/EN 62052, IEC/EN 60255-5 and other IEC/EN standards. This unit can be used with any Haefely combination wave generator with 2 Ω source impedance.
Key Features
- Outputs 0.5/0.8/1.5/2.5/4/6/8/12 kV
- Front time 1.2 us +/-30 %
- Time to half-value 50 us +/-20 %
- Energy 0.5 Joule +/-10 %
- Output impedance 500 Ω +/-10 %
- Common Output, normally connected to ground, can be floating up to 440 VAC
- Load capacity lesser than 600 pF, Load resistance greater than 50 Ω
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories |
VTM 15000 Impulse Transformer |
| Standards |
|
| Output Voltage |
15 kV - PSURGE 8000 & PIM 100 |
| Turns Ratio | 1:2 |
| Impulse Shape | 1.2 / 50 µs Voltage impulse |
| Output Impedances | 500 Ω - Load capacity < 600pF, Load resistance > 50kΩ |
| Impulse Output |
High - Haefely HV sockets safety banana socket |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
