HAEFELY AG

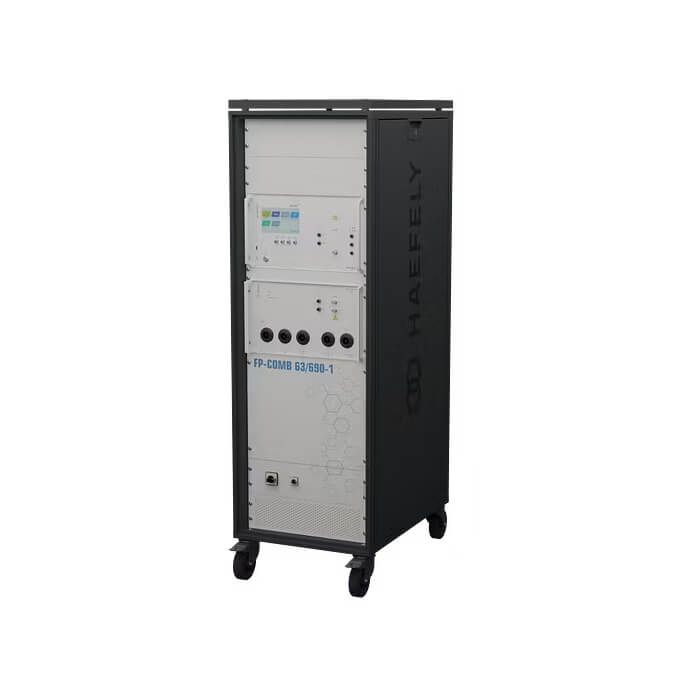

FP-COMB 63/690-1 - Coupling/Decoupling Network
The Haefely FP-COMB 63/690-1 coupling/decoupling network for surge combination wave, ring wave and EFT/Burst – is fully compliant with the standard requirements of IEC/EN 61000-4-4, IEC/EN 61000-4-5 and IEC/EN 61000-4-12.
The FP-COMB 63/690-1 is controlled by the Haefely AXOS5 / AXOS8 expandable immunity test system(s). The CDN automatically changes the coupling paths, phase angles and source impedance based on test parameters set by the user via the AXOS controller – depending on the standard and coupling mode.
The FP-COMB 63/690-1 was designed to reduce residual voltage levels by integrating the proper decoupling inductors for each type of CDN application in order to meet the requirements (with regard to voltage drop at the rated current).
Apart from covering the EN/IEC 61000-4-5 standard, the FP- COMB 63/690-1 also covers tests to meet surge requirements outlined in ANSI/IEEE C62.41.
Key Features
- Surge Combination Wave, 1.2/50 μs - 8/20 μs.
- Ring Wave, 100 kHz.
- Electrical Fast Transient (EFT) / Burst.
- 5 kV impulse voltage for Surge Combination Wave and Ring Wave.
- 5 kV impulse voltage for EFT/Burst.
- Line voltage 690 V AC (phase-to-phase) / DC.
- 63 A EUT current per phase 1.
- Phase angle synchronisation for each path.
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 552mm x 800mm x 1605mm, 552mm x 852mm x 1754mm incl. rack rollers, crane hook and power plug (W x D x H) |
| Weight | 243 kg (Without AXOS) |
| Coupling |
CDN Inputs: CEE-socket 690V / 63A - 1 connector CDN Outputs: 10mm socket front panel - 5 connectors Waveforms: EFT / Burst - IEC / EN 61000-4-4 Ed.3 Surge Combination Wave - IEC / EN 61000-4-5 Ed.3 Ring Wave - IEC / EN 61000-4-12 Ed.3 Maximum EFT / Burst Input Voltage: 5 kV Maximum Surge Combination Wave Input Voltage: 7 kV Maximum Ring Wave Input Voltage: 7 kV Coupling Path Selection: Automatic - IEC + ANSI Synchronisation: 10 V to 690 V input voltage 0⁰ to 359⁰, step 1⁰ - Sync. On coupling path, output BNC rear panel |
| Decoupling |
Voltage AC: Up to 690 V, 50/60 Hz, 16,7Hz, DC Nominal Current: 63 A EFT / Burst Input Voltage Range: 0.2 kV – 5 kV Surge Combination Wave Input Voltage Range: 0.2 kV – 7 kV Ring Wave Input Voltage Range: 0.2 kV – 7 kV Coupling Path Selection: Automatic Synchronisation: 10 v to 690 V input voltage, 0⁰ to 359⁰, step 1⁰ |
| Interface |
Extension Connector (37 pol. Sub-D connector): Interface cable to AXOS LEDs: Indication of coupling path Power ON LED, CDN active LED, overtempt |
