27111618001
27111618001
Harting

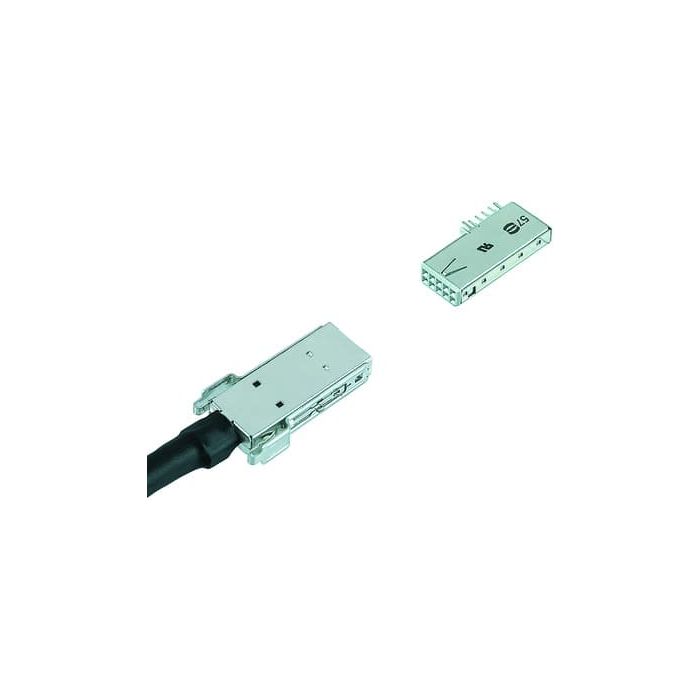

Har-link male IDC 10P conn assy kit
Connectors, Male connector, IDC insulation displacement termination, Polyester, Black, Rated current:1.5 A, Contacts: 10, Conductor cross-section: 0.05...0.08 mm2, Copper alloy
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | har-link connector |
| Product Family | har-link® |
| Product Brand Name | 27 11 161 8001 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 20.0000 |
| Quantity Interval | 20.0000 |
| Country of origin | CH |
| Manufacturer's Brand | har-link® |
| Number of poles | 10.0000 |
| Insertion cycles minimum | 250.0000 |
| Insert material | Thermoplast |
| Conductor connection method | Insulation displacement termination |
| Conductor cross-section mm2 | 0.05…0.08 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1.5 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
