3030-10
3030-10
Hioki
HiTester
Basic Analog Tester (20 kiloohm/V)

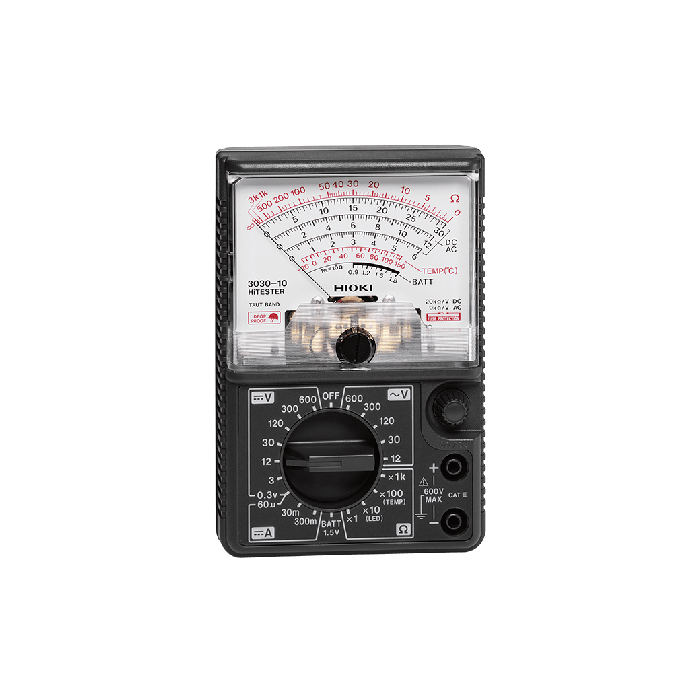

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.
CAT III 600 V
Key Features
- Drop proof design withstands drop onto a concrete floor from a height of 1 meter
- LED check, Battery check support
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | For resistance measurement range, R6P (AA) ×2 batteries |
| Dimensions and Weight | 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz) |
| Accessories | Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1 |
| DC Voltage range | 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V |
| AC Voltage range | 12 V (9 kΩ/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s. Average rectifier effective value, Max. rated voltage: 600 V |
| DC Current Range | 60 µA/30 m/300 mA (300 mV internal voltage drop) Accuracy: ±3 % f.s. |
| Resistance range (2-terminals) | 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k Accuracy: ±3 % of scale length |
| Battery Check | 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s. |
| Temperature Scale | Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermistor Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers. |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
