3127A
3127A
Bird
100 W to 250 kW, Single Carrier RF Power Monitor

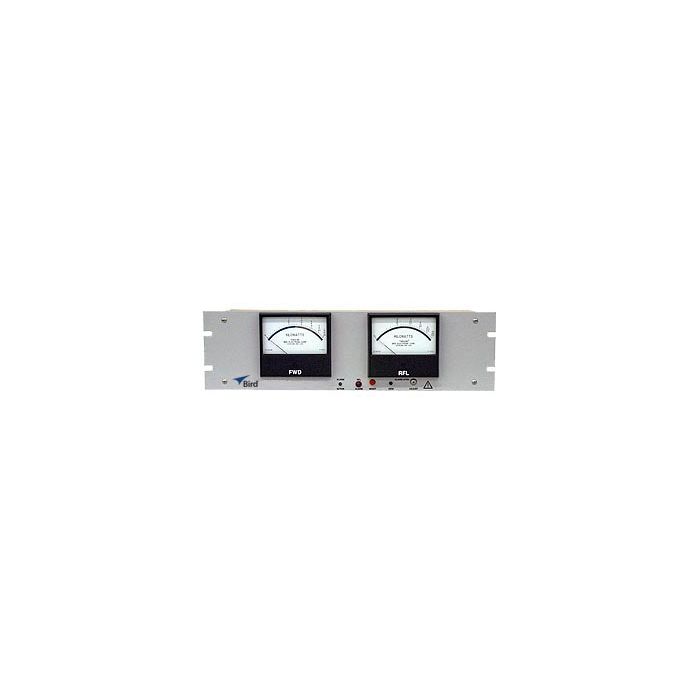

The 3127A Wattcher® RF Power Monitor/Alarm is designed to protect and monitor your RF frequency transmission system by connecting the power meter to a Bird dual port Thruline® line section and two elements compatible with the RF coaxial line.
The elements are selected by the user to cover the desired power levels and frequency ranges. Purpose and Function Abnormal loading conditions cause the transmitter to quickly shutdown, a user selectable audible alarm to sound, and an alarm LED to flash. Remote access is available for resetting audible and visual alarms. Fail-safe or non fail-safe modes are user selectable and the reflected power trip level is adjustable.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | Single Carrier, Wattcher® RF Monitor |
| Absolute Accuracy | ± 5% of full scale |
| Dimensions | 19" x 5-7/32" x 3-3/4" (483 x 133 x 95 mm) |
| Housing surface finish | Gray Powder Coat |
| Frequency Range | 2 MHz - 1 GHz |
| Power range | 100 W to 250 kW using Bird® Plug-in Elements |
| Elements | Two from tables 1-5/8 A, 3-1/8 A, 4-1/16 A, or 6-1/8 A |
| Meter scales | (FWD) 5,10, 25 kW (RFL) 1, 2.5, 5 kW |
| Sensitivity | 100 µA/3000 ohm |
| Power Supply | AC Power 115/230 V, 50/60 Hz @ 0.125 A max. DC Power 9 to 16 V @ 1 A max. |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
