3244-60
3244-60
Hioki

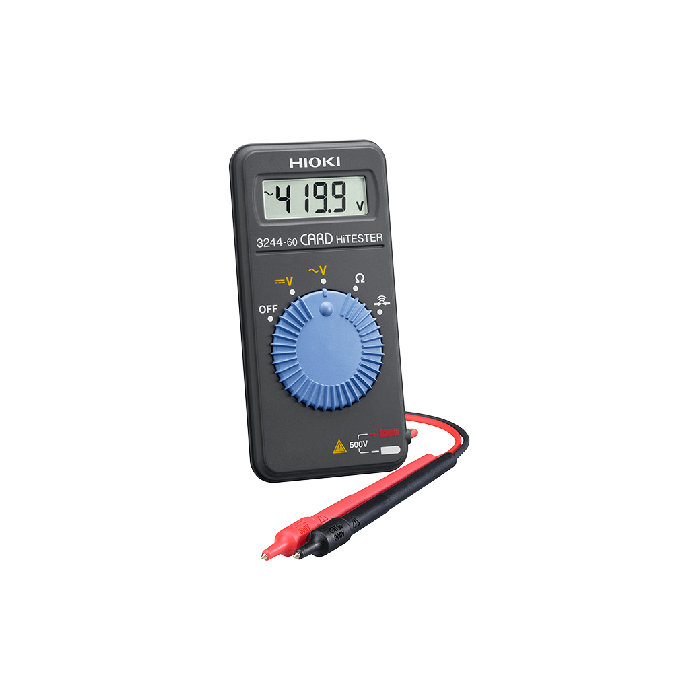

Card Hitester 3244-60 - Card-style Pocket Digital Multimeter for General Electrical Maintenance and Testing
The 3244-60 is a card-style digital multimeter for general electrical maintenance and testing, and includes gold-plated test leads for better contact. Insulated test pin sleeves also prevent short-circuits.
CAT III 300 V, CAT II 600 V
More Information
Attribute
Value
Key Features
Better contact test leads with 15 mm gold-plated tip pin Only 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight Full auto-ranging function and automatic power saving function Overload protection to 500 V at resistance or continuity functions
Basic Specifications
DC Voltage range
419.9 mV to 500 V, 5 ranges, Basic accuracy: ±0.7 % rdg. ±4 dgt.
AC Voltage range
4.199 V to 500 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified)
Resistance range
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt.
Continuity buzzer
Detection level 50 Ω ±40 Ω, Diode check: Not available
Auto power save
Available (cancel selectable)
Display
Digital LCD, max. 4199 digits
Sampling rate
2.5 times/sec
Power supply
Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours
Dimensions and mass
55 mm (2.17 in) W × 109 mm (4.29 in) H × 9.5 mm (0.37 in) D, 60 g (2.1 oz)
Accessories
Instruction manual ×1, Carrying case ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1)
