3333-01
3333-01

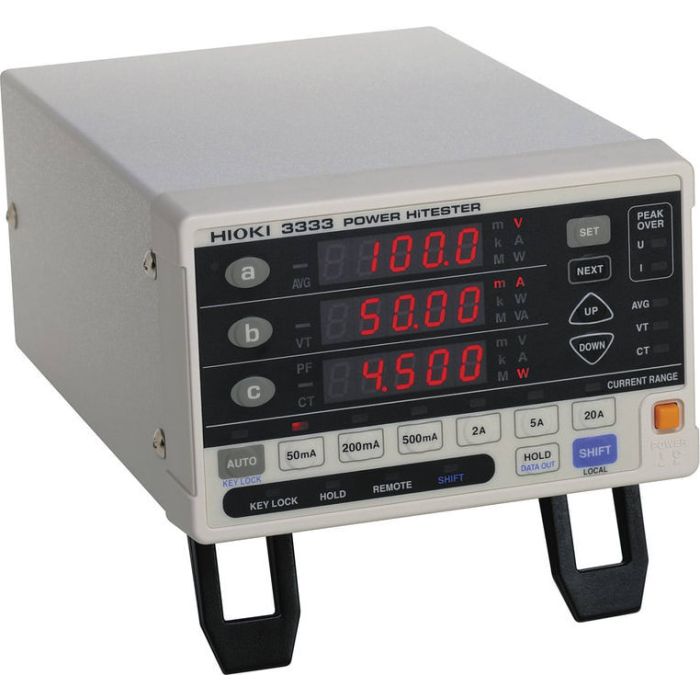

Hioki
Power HiTester, Buit-in GP-IB
This product is available in 5-7 weeks
Single Phase Power Meter for Production and Inspection Lines
Hioki benchtop power meters and power analysers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The 3333 is single-phase, direct input AC power meters designed to precisely measure the power consumption of electrical household appliances on production lines.
Key Features
- Ideal for replacing portable instruments, ±0.1% basic accuracy
- Extended period of guaranteed accuracy of 3 years
- 50mA to 20A AC current range (300 V Max., Accuracy guaranteed up to 30 A)
- Print out with the 9442 and RS-232C interface
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£1,269.21
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, 20 VA max. |
| Included Accessories | Instruction manual ×1, Power cord ×1 |
| Interfaces | RS-232C standard, GP-IB (Model 3333-01 only) |
| Measurement Items | Voltage, Current, Active power, Apparent power, Power factor |
| Functions | Scaling (VT, CT ratio settings), Average function |
| Dimensions and Weight | 160 mm (6.30 in) W × 100 mm (3.94 in) H × 227 mm (8.94 in) D, 1.9 kg (67.0 oz) |
| Measurement Range | [Voltage] 200 V AC (300 V Max.) [Current] 50/ 200/ 500 mA, 2/ 5/ 20 A AC (30 A Max.) [Power] 10.000 W to 4.000 kW (combination of voltage and current ranges) |
| Measurement Lines | Single-phase 2-wires |
| Display Refresh Rate | 5 times/s |
| Input Resistance (50/60 Hz) | [Voltage] 2.4 MΩ, [Current] 7 mΩ or less (direct input) |
| Basic Accuracy (Active power) | [Guaranteed for 1 year, Voltage, Current, Active power] ±0.1 % rdg. ±0.1 % f.s. (45 Hz to 66 Hz, input current 20 A or less) [Guaranteed for 3 years, Voltage, Current, Active power] ±0.1 % rdg. ±0.2 % f.s. (45 Hz to 66 Hz, input current 20 A or less) |
| Frequency Characteristics | 45 Hz to 5 kHz |
| D/A Output | 3 channels outputs simultaneously for voltage, current, active power +2 V DC f.s. |
