3334-01
3334-01

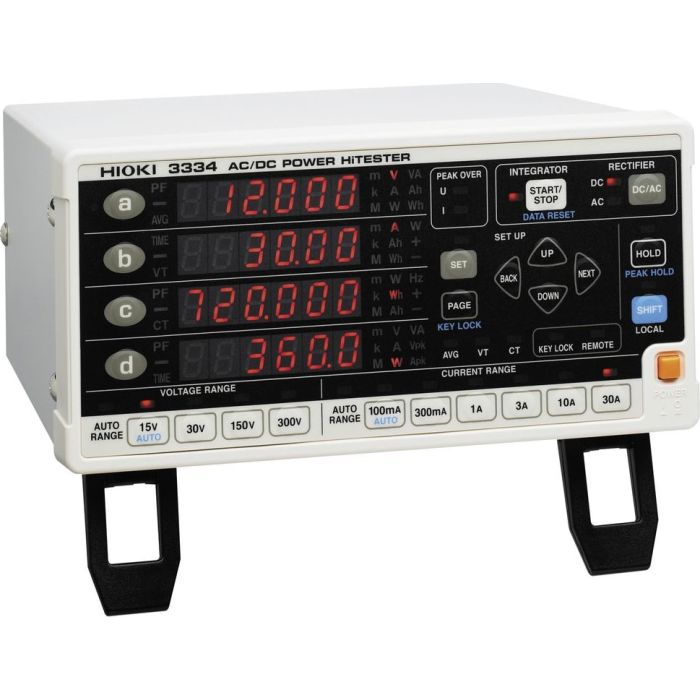

Hioki
AC/DC Power HiTester, Buit-in GP-IB
This product is available in 5-7 weeks
Single Phase Power Meter Compatible with DC Measurement and Current/Power Integration Measurement
Hioki benchtop power meters and power analysers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The 3334 is an AC/DC power meter that measures inrush current and power consumption, ideal for DC and current and power integration applications to meet energy efficiency standards.
Key Features
- Compatible with the SPECpower® (*1) benchmarking for server power consumption
- DC measurement mode, AC, and AC+DC measurement
- Integration function for current and power
- ±0.1% high basic accuracy (*2) For complete details, please refer to the specifications)
- Extended period of guaranteed accuracy of 3 years
- Complete accuracy over a wide input range
*1:SPECpower® is a registered trademark of Standard Performance Evaluation Corporation.
*2: For complete details, please refer to the specifications.
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | 100 V to 240 V AC, 50/60 Hz, 20 VA max. |
| Included Accessories | Instruction manual ×1, Power cord ×1 |
| Interfaces | RS-232C included as standard, GP-IB (Model 3334-01 only) |
| Measurement Items | Voltage, Current, Active power, Apparent power, Power factor, Frequency, Integration (current, active power), Waveform peak (voltage and current) |
| Functions | Rectification method switchable between AC+DC (True RMS), DC (simple average), AC (True RMS), Wave peak measurement, VT or CT ratio settings, Average function |
| Dimensions and Weight | 210 mm (8.27 in) W × 100 mm (3.94 in) H × 245 mm (9.65 in) D, 2.5 kg (88.2oz) |
| Measurement Range | [Voltage] AC/DC 15.000/ 30.00/ 150.00/ 300.0 V [Current] AC/DC 100.00/ 300.0 mA, 1.0000/ 3.000/ 10.000/ 30.00 A [Power] 1.5000 W to 9.000 kW (combination of voltage and current ranges) |
| Measurement Lines | Single-phase/ two-wires |
| Display Refresh Rate | 5 times/s |
| Integration Measurement (Integration Time Up To 10,000 Hours) | [Current] No. of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value) [Active power] No. of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value) |
| Input Resistance (50/60 Hz) | [Voltage] 2.4 MΩ, [Current] 10 mΩ or less (direct input) |
| Basic Accuracy (Active power) | ±0.1% rdg. ±0.2% f.s. (DC), ±0.1% rdg. ±0.1% f.s. (45 Hz to 66 Hz) Note: Provided accuracy of 1 Year, typical value |
| Frequency Characteristics | DC, 45 Hz to 5 kHz |
| Waveform Output | Parameter output representation: voltage, current and power (3 simultaneous channels), Output voltage: 1 V DC f.s. |
| Analogue Output (D/A Output) | Parameter output representation: voltage, current active power and selected 1 item (4 simultaneous channels), Selected 1 item from apparent power, power factor, current integration, active power integration, Output voltage: ±2 V DC f.s. |
