Artel Video Systems

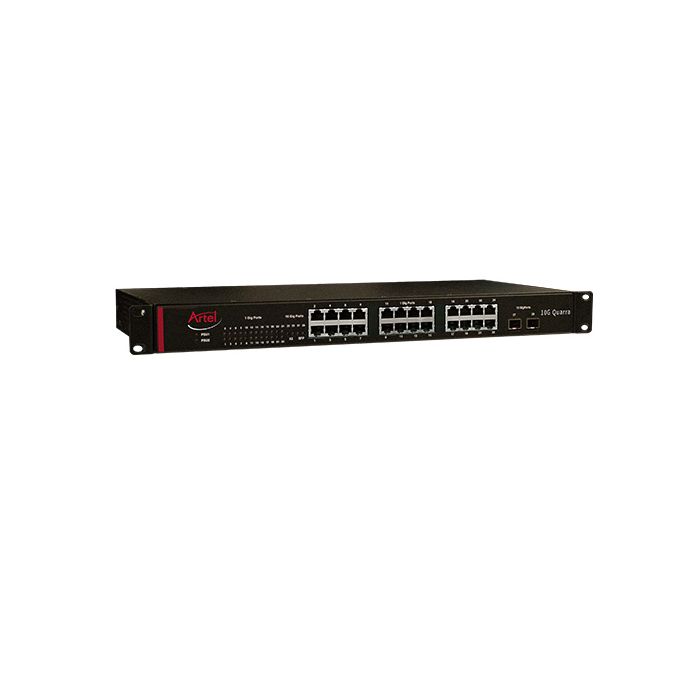

Quarra 10 Gbps PTP Rackmount Ethernet switch with dual power supply
Artel’s Quarra range of IP PTP switches is designed for Carrier Class applications where accurate timing and control is required. These switches are aimed at the professional markets of Audio/Video Broadcast, Defense & Security, Finance, Utilities, Telecom, and Enterprise IT.
The Quarra switches are designed as either a standard 1RU rackmount unit with dual power supplies, or a half-width 1RU unit with a single power supply, the switches are available in several configurations of 1 Gigabit and 10 Gigabit interfaces, supporting a best-in-class layer 2 IEEE 1588v2 algorithm.
A 1pps external reference input from GPS is included as standard, and options include an internal layer 1 Synchronous Ethernet module.
The Quarra switches support SMPTE Standards-based Timing ST 2110-10 and ST 2059-2 and are RAVENNA AES67 approved.
The Quarra switches also support IGMP v2/3, QoS, protection switching, VLAN, MEF service delivery and network OAM.
The Quarra switches are designed as either a standard 1RU rackmount unit with dual power supplies, or a half-width 1RU unit with a single power supply, the switches are available in several configurations of 1 Gigabit and 10 Gigabit interfaces, supporting a best-in-class layer 2 IEEE 1588v2 algorithm.
A 1pps external reference input from GPS is included as standard, and options include an internal layer 1 Synchronous Ethernet module.
The Quarra switches support SMPTE Standards-based Timing ST 2110-10 and ST 2059-2 and are RAVENNA AES67 approved.
The Quarra switches also support IGMP v2/3, QoS, protection switching, VLAN, MEF service delivery and network OAM.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
390-100001-00 Specifications
- Industry’s most Accurate IEEE 1588 Timing & Synchronization for nanosecond accurate timing.
- Synchronous (L1) Ethernet, Master and Slave. Precision clock timing using DSPLL® technology.
- 1pps reference. Network wide synchronization using IEEE1588 or SyncE.
- SMPTE Standards-based Timing
- ST 2110-10 System Timing and Definition
- ST 2059-2 SMPTE Profile for Use of IEEE-1588 Precision Time Protocol in Professional Broadcast Applications
- Ravenna AES67 approved.
- IEEE802.1 AVB.
- Full management from Web GUI or command line interface. No training required-units can be quickly and easily configured
| Attribute | Value |
|---|---|
| Product Brand Name | Quarra |
| Manufacturer | Artel |
| Form | 1RU rackmount |
| Electrical Rating | 100-240Vac, 0.4-0.2A, 50-60Hz , 50Watts (Maximum) |
| Relative Humidity | 10 to 95% (non-condensing) |
| Height | 44.45mm |
| Width | 438.15mm |
| Depth | 203.2mm |
| Applications |
|
| Carrier Ethernet |
Layer-2 IEEE 1588v2 : Precision Time Protocol (PTP) timing and synchronization IEEE 802.1ad : Provider bridging (VLAN Q-in-Q) switch - 8 MACs, 4K VLANs Per queue MEF E-LINE or per port MEF E-LAN, E-TREEService Points - Per port per queue Dual Leaky Bucket Service Policers with PCP or DSCP remarking per Service port - Static tagging options per Service Point OAM Hardware for generating CCM messages, CC |
| Quality of Service |
EPS and ERPS Protection Switching TCAM-based VLAN classification and translation with pattern matching against Layer-2 through Layer-4 information Up to 256 QoS and VLAN TCAM entries Eight QoS queues per port with strict or deficit weighted round-robin scheduling (DWRR) DSCP translation, both ingress and/or egress DSCP remarking based on QoS and VLAN TCAM entries VLAN (PCP, DEI and VID) translation, both ingress and egress Per-queue, per-port policing and shaping, programmable in steps of 100 kbps Per-flow policing through TCAM-based pattern matching, Up to 256 policers Full-duplex flow control (IEEE 802.3x) and half-duplex backpressure, symmetric and asymmetric |
| Layer 2 Switch |
Port mirroring Port-based access control IEEE 802.3ad : Link aggregation IEEE 802.1x : Network Access Control IEEE 802.1w : Rapid Spanning Tree Protocol IEEE 802.1s : Multiple Spanning Tree Protocol Simple Network Management Protocol (SNMP) Independent and shared VLAN learning 256 VLAN egress tagging TCAM entries Link aggregation traffic distribution is programmable and based on Layer-2 through Layer-4 information Basic Switching - Forwarding, address learning and address aging VLAN IEEE 802.1Q (4,096 VLAN’s) - Push / pop / translate up to two VLAN tags; translation in ingress and / or egress 8,192 MAC addresses. Including Generic Attribute Registration Protocol (GARP) Wire-speed hardware-based learning and CPU-based learning configurable per port |
| Multicast |
8K Layer-2 Multicast group addresses with 64 port masks 8K IPv4/IPv6 multicast groups Internet Group Management Protocol v2 & v3 Multicast Listener Discovery (MLDv1) Multicast Listener Discovery (MLDv2) with source specific multicast forwarding |
| Temperature Range | 0-40C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
