3DCM800 - 3DCM828

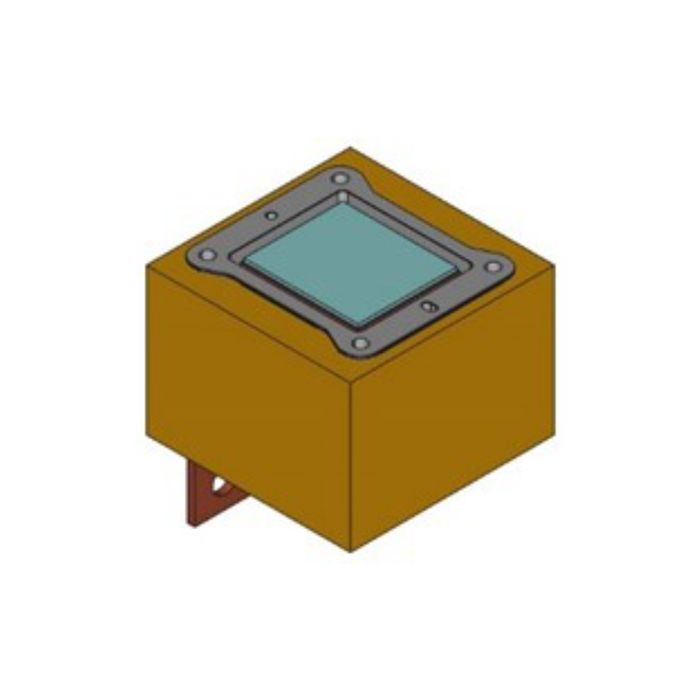

The 3DCM800/3DCM828 CMOS Space Camera Head is a high-density, high-performance, high-resolution CMOS Camera Head for space applications. The 3DCM800/3DCM828 embeds a high-resolution CMOS image sensor (monochrome : P/N 3DCM800, RGB: P/N 3DCM828), offering multiples readout features (sub-sampling, ROI, multi-parameters). It embeds a high performance electronic architecture based on a reconfigurable FPGA associated with its TMR configuration memories, as well as volatile and non volatile memories. This allows for an efficient control of the sensor, as well as processing capacities for image pre-processing and formatting, making the 3DCM800/3DCM828 suitable for a large range of applications.

The 3DCM800/3DCM828 electrical interface offers multiple LVDS User IOs, usable for interfaces such as CameraLink or SpaceWire, for an easy integration into complex systems requiring high-speed and flexible data and image transmission. All needed power supplies are embedded in the camera module, which only requires a 5V input. The 3DCM800/3DCM828 CMOS Camera Head is based on 3D PLUS stacking technology, which is qualified for harsh environment, withstanding appreciable mechanical shock and vibrations, and 3D PLUS experience in space design and components choice, allowing for a high reliability and high density Camera Head.
