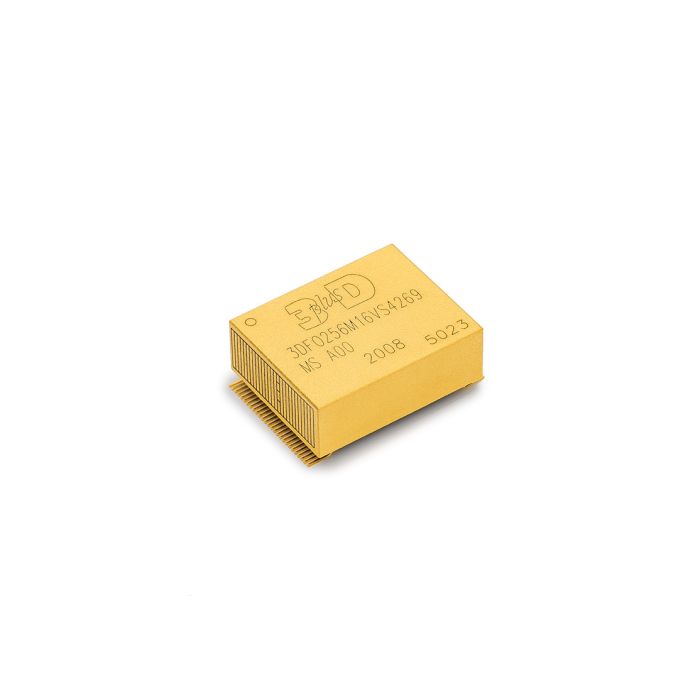

3DFO256M16VS4269
3DFO256M16VS4269
3D Plus
3.0V, 256 Mbit Memory Module: 16-bit bus width, NOR Flash based on 4M x 16
The 3DFO256M16VS4269 is a 3.0 V single power 256 Mbit Flash memory. The memory organised in 4 banks of 64 Mbit with separate chip enable (#CE) and write proect/accelerate (#WP/ACC) controls. Each individual bank is a 16M x16 bit device. The simultaneous read/write operations allow data to be continuously read from one bank while executing erase/program in any other bank. Plus, there is no latency between read and write operations.
Hardware data protection measures include a low VCC detector that automatically inhibits write operations during power transitions. Thanks to power management circuits, the mempry can reduce its power consumption to nearly zero during inactive periods.
All these features enhanced by 3D Plus technology, make this memory a cost-effective solution for low power and high-capacity data storage needs. The module packaged in a SOP 54 is available for Commercial, Industrial or Military temperature range. It is also available with screening options up to space grade level.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | NOR FLASH |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Memory | |
| Power Supply | |
| Pin Assignment | SOP 54 - Pitch 0.50 mm |
| Temperature Range |
|
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
