3DLT164245VS1645
3DLT164245VS1645
3D Plus

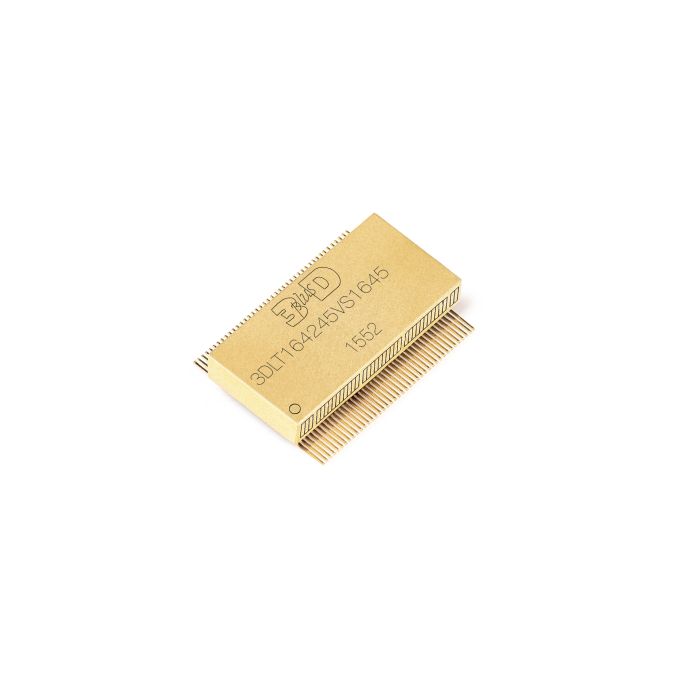

3.3V to 5V bidirectional Level Shifter, 32-bit Transceiver LVTLS Module
The 3DLT164245VS1645 is a rad-hard advanced high speed CMOS, Schmitt trigger 32-bit (Dual 16-bit) bidirectional multi-purpose transceiver with 3-state outputs and cold sparing.
Designed for use as an interface between a 5V bus and a 3.3V bus in mixed 5V/3.3V supply systems, it achieves high-speed operationwhile maintaining the CMOS low-power dissipation. All pins have cold spare buffers to change them to high impedance when VCC is tied to ground.
This module is intended for two-way asynchronous communication between the data buses. The direction of the data transmission is determined by the DIR input. The A port interfaces with the 3.3V bus but can also operate at 2.3V. The B post operates with the 5V bus. The 3DLT164245VS1645 is packaged in an 82 pin SOP.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | LVT |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Pin Assignment | SOP 82 - Pitch 0.50 mm |
| Temperature Range |
|
| Power Supply | 4.5V - 5.5V |
| Features |
|
