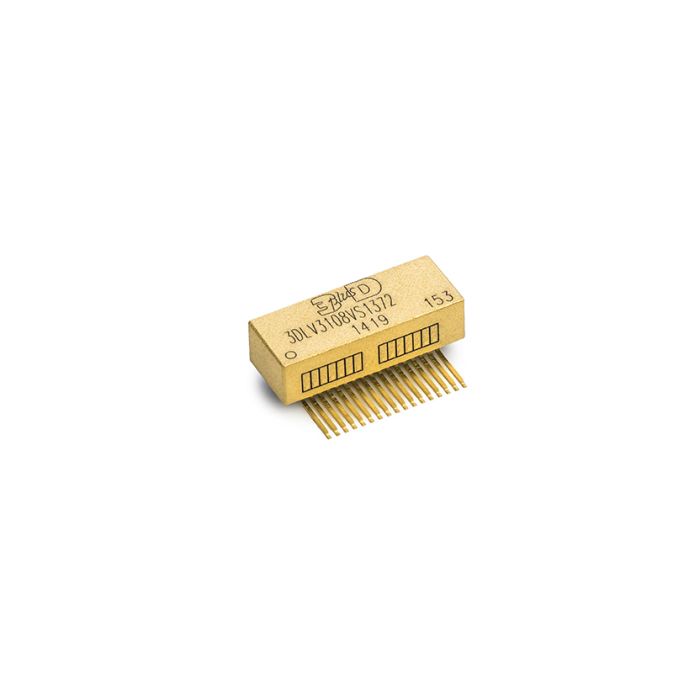

3DLV3108VS1372
3DLV3108VS1372
3D Plus
3V Eight Line Drivers LVDS Driver Module, based on Quad, 8 Lines-SOP
The 3DLV3108VS1372 is Eight CMOS differential line driver, designed for applications requring ultra low power dissipation and high data rates. The device is designed to support data rates up to 400 Mbps (200 MHz) utilising Low Voltage Differential Signalling (LVDS) technology.
The 3DLV3108VS1372 accepts LVTTL/LVCMOS input levels and translates them to low voltage (450 mV) differential output signals. The 3DLV3108VS1372 and companion line receiver (3DLV3208VS1373) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | LVDS |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Pin Assignment | N/A |
| Temperature Range |
|
| Power Supply | 3.3 V power supply |
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
