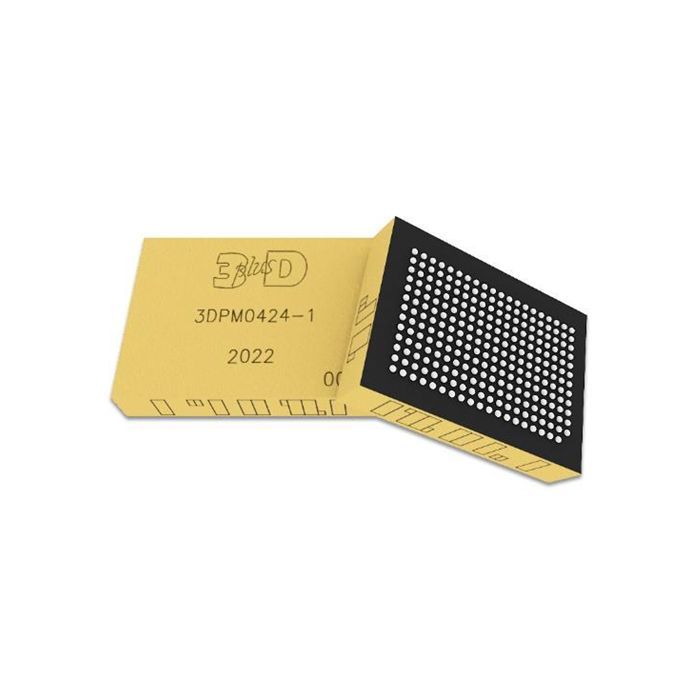

3DPM0424
3DPM0424
3D Plus
1.1V to 1.3V input voltage Space DDR4 Termination Regulator, ± 2A output current
The 3DPM0424-1 is a compact and flexible, Rad Hard by Design, sink/source Termination Regulator for low input voltage, low-noise Double Data Rate (DDR) memory. The 3DPM0424-1 maintains fast transient response times; offers a remote sensing function; supports control via Command pin and provides all power requirements for DDR4 VTT bus designs.
By incorporating radiation effect mitigation techniques, the 3DPM0424-1 offers SEL/SET LETth of 60 MeV.cm²/mg and a TID of 75krad(Si). The 3DPM0424-1 is manufactured with 3D PLUS’s space qualified stacking technology designed for high reliability applications, and is available in a compact, low weight 259-pin BGA package.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | Termination Regulator (DDR4 TR) |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Input Voltage | 1.1V to 3V |
| Package | BGA 259 |
| Temperature Range | -40°C to +105°C |
| Features |
|
| Dimensions | 30x22x6.4 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
