3DSD1G32VS2490

3DSD1G32VS2490

3D Plus

3.3 V, 1 Gbit SDRAM organised as 32M x32, based on 32M x16

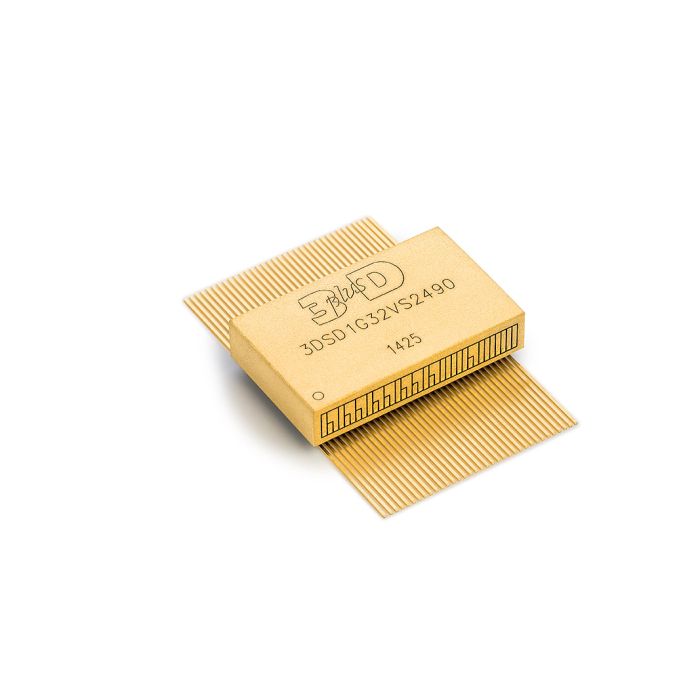

main product photo

The 3DSD1G32VS2490 is a high-speed highly integrated Synchronous Dynamic Random Access Memory containing 1,073,741,824 bits. Each bank has a 16-bit interface and is selected with specific #CS. All other signals are common to the two 512Mbit SDRAM memories. It is particularity well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation. The 3DSD1G32VS2490 is packaged in a 70 pin SOP.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Type SDRAM
Data_Sheet

To request a datasheet, contact a member of our high-reliability team [email protected]
Memory
Power Supply
Pin Assignment SOP 70 - Pitch 0.635mm
Temperature Range
  • 0°C to +70°C
  • -40°C to +85°C
  • -40°C to +105°C
Features
  • Fully synchronous; all signals registered on positive edge of system clock
  • Internal pipelined operation; column address can be changed every clock cycle.
  • Programmable burst length; 1, 2, 4, 8 or full page
  • Auto precharge includes concurrent auto precharge, and auto refresh modes
  • Self refresh modes
  • LVTTL-compatible inputs and outputs
  • Available with screening option for high reliability application (Space, etc…)
More Information
Attribute Value
Data Sheet Click here to view
