3DSD4G16VS8483
3DSD4G16VS8483
3D Plus
3.3 V, 4 Gbit SDRAM organised as 256M x16, based on 32M x16

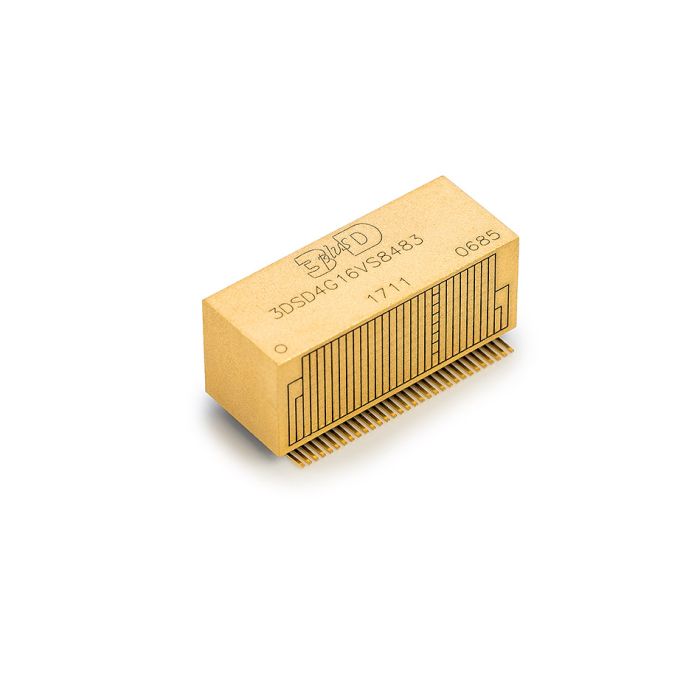

The 3DSD4G16VS8483 is a high-speed highly integrated Synchronous Dynamic Random Access Memory containing 4,294,967,296 bits. It is organised as eight banks of 512 Mbits. Each bank has a 16-bit interface and is selected with specific #CS. All other signals are common to the eight 512 Mbit SDRAM memories. Each memory in the bank is organised as 32M x16-bit.
It is particularity well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation. The 3DSD4G16VS8483 is packaged in a 62 pin SOP.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Features |
|
| Product Type | SDRAM |
| Memory | 4Gb |
| Power Supply | Single 3.3 V power supply |
| Pin Assignment | SOP 62 - Pitch 0.80mm |
| Temperature Range |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
